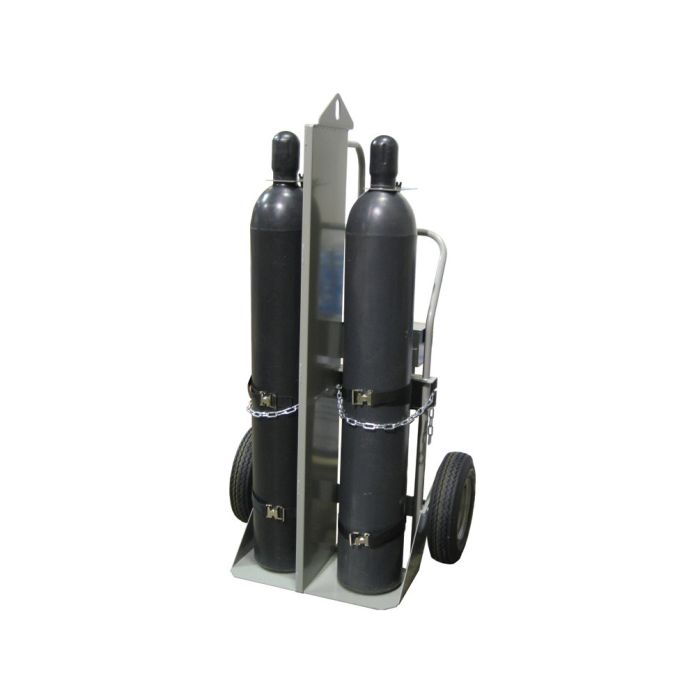

Justrite 35050 Double Cylinder Hand Truck with Firewall and Hoist Ring - 16" Pneumatic Wheels - Tool Box
- Steel encased Marinite creates a one-hour fire barrier between the fuel and oxidizer—exceeds minimum NFPA 55, NFPA 1, OSHA and CGA standards
- Locking posts and collar plates ensure total cylinder immobilization for hoisting applications
- Configured with 16-in (406-mm) steel hub pneumatic wheels with dual ball bearings for easier rolling—less effort required
- Rated at 600-lb (272-kg) weight capacity
Justrite 35050 Double Cylinder Hand Truck with Firewall and Hoist Ring - 16" Pneumatic Wheels - Tool Box
Safely store and transport a pair of fuel and oxidizer cylinders, common in welding applications, up to 13-in (330-mm) and 10-in (254-mm) in diameter, respectively. Constructed using 1.25-in (32-mm) diameter round steel tube with continuous welding, these durable, double-cylinder trucks provide optimum safety, strength, and longevity. Floor plate made of thick 11-gauge (3-mm) steel with safety fins prevents warping or breaking. The zero-lift height loading allows floor plate to lay flat, thereby eliminating the need to lift cylinder during loading and unloading. Corrosion-resistant powder-coat finish throughout for long life and smooth handling.
Two heavy-duty 1.5- x 54-in (38-mm x 1372-mm) polypropylene support straps, lab tested to 1138-lb (516-kg), feature steel cinch buckles for secure attachment of cylinder—eliminate any cylinder rolling potential seen in chain-secured units. Included welded loop chains provide a secondary means for securing the cylinders. Exclusive bumper guard edging grips cylinder and minimizes damage to cylinder and hand truck. Triple grip push handle greatly enhances safety on top heavy loads by expanding available grip area for improved leverage and swing radius. Includes tool box attachment with integral lockable lid for torch storage.
Move hand truck easily around a construction site, into locations with poor accessibility, or from floor to floor with this hoist-equipped design. Extensive structural framing with 0.375-in (10-mm) thick hoist plate makes these units safe when lifted by hoist rigs.
†Marinite® I is a registered trademark of BNZ Materials, Inc.
Features:
- Steel encased Marinite creates a one-hour fire barrier between the fuel and oxidizer—exceeds minimum NFPA 55, NFPA 1, OSHA and CGA standards
- Locking posts and collar plates ensure total cylinder immobilization for hoisting applications
- Configured with 16-in (406-mm) steel hub pneumatic wheels with dual ball bearings for easier rolling—less effort required
- Rated at 600-lb (272-kg) weight capacity
Specs:
- Model No.: 35050
- Cylinder Capacity: 2
- Minimum Cylinder Diam (in): 5
- Cylinder Capacity with Max Cylinder Dia: (1) 10 inch and (1) 13 inch
- Hoist Ring Equipped: Yes
- Locking Post Equipped: Yes
- Firewall Rating: One-Hour
- Tool Box/Tray: Tool Box
- Main Wheel Type: Pneumatic
- Main Wheel Size (inch): 16
- Main Wheel Size (mm): 406
- Weight Capacity (lb): 600
- Weight Capacity (kg): 272
- Strap Style: Poly Cinch Strap with Steel Buckle and Chain
- Straps Per Cylinder: 2
- Material Specifications: Steel
- Complies with NFPA 1 Fire-Code: Yes
- NFPA 55: Yes
- OSHA Compliance: Yes
- CGA: Yes
- Net Weight, lbs: 161
- Net Weight, kg: 73
- Net Dimensions (W x D x H): 32 x 24 x 64" / 813 x 610 x 1626 mm
* Note: Tanks not Included
| Weight(LBS) | 185.000000 |
|---|---|
| Cylinders Held | 2 |
| Divider Between Tanks | Yes |
| Wheel Type | 16" Pneumatic |
| Has Rear Casters | No |
| Has Lifting Eye | Yes |
| Width | 32" |
| Depth | 24" |
| Height | 64" |
