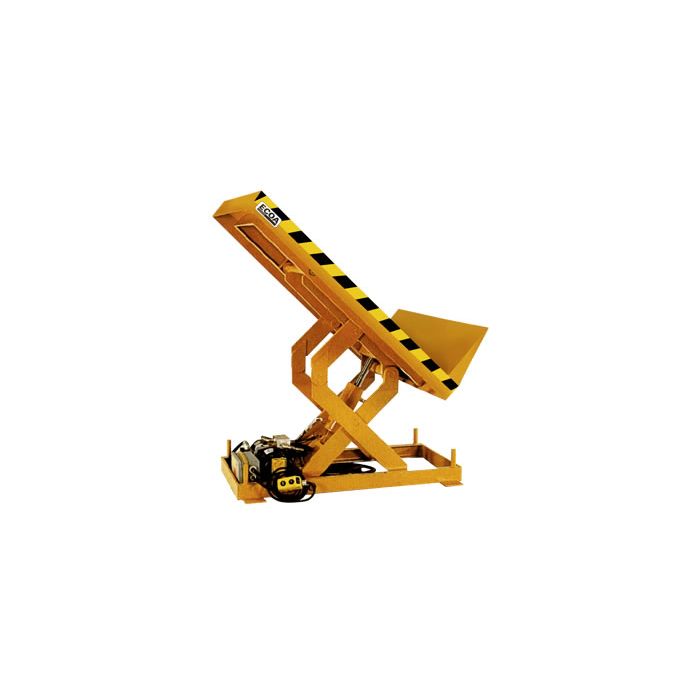

Presto ECOA CLTLT Series Compact Lift and Tilt Tables
Heavy-duty electrohydraulic tables with capacities of 2,000 to 6,000 lbs., angle of tilt to 45 degrees View More
In stock
Product Code
Presto_ECOA_CLTLT_Series_Compact_Lift_and_Tilt_Tables
Presto ECOA CLTLT Series Compact Lift and Tilt Tables
| Model Number | Platform Size | Capacity | Lowered Height | Raised Height | Base Dimensions |
|---|---|---|---|---|---|
| CLTLT-02-45 | 24" x 48" | 2,000 lbs | 10" | 22-1/2" x 47" | |
| CLTLT-04-45 | 24" x 48" | 4,000 lbs | 10" | 22-1/2" x 47" | |
| CLTLT-06-45 | 24" x 48" | 6,000 lbs | 10" | 22-1/2" x 47" |
Presto ECOA CLTLT Series Compact Lift and Tilt Tables
Heavy-duty electrohydraulic tables with capacities of 2,000 to 6,000 lbs., angle of tilt to 45 degrees with platform sizes of 24 x 48 to 48 x 60 in. The CLTLT lifts and tilts within its own base frame, so they require minimal floor space to operate.
NOTE: These units tilt as the platform is raised. They do not allow independent control of Lift and/or Tilt.
Features:
- Base and platform leg rollers are captured within the channel frame for maximum stability
- Internally-mounted 3⁄4HP, 115/230V, 1PH, 60Hz, or 208/230/460V, 3PH, 60 Hz intermittent duty TENV super torque motor.
- 24 V operating control voltage
- Pushbutton Pendant control
- 12" high lip on pivot end
- Double-acting hydraulic cylinders
- Surfaces degreased, oxide primed and finished with two coats of enamel
- Lifetime self-lubricating, antifriction bearings at all pivot points
| Weight(LBS) | 0.000000 |
|---|
