Jameson Transmitters and Recievers
Jameson 17-100R Wand Signal Receiver
Two (2) active frequenciesTwo (2) operating modes: line tracing (82 kHz) and sonde locating (512 Hz)Carrying case, manual and batteries includedJameson 17-300R Cable and Pipe Receiver
The Jameson cable and pipe locating system is built on a proven design allowing users to adapt to their specific needs. Multiple active frequencies allow the user to accurately locate with a minimum of interference while maintaining the ability continue locating past faults and around conduit bends. Users can control the transmitter’s output power and frequency right from the hand-held receiver, eliminating the back and forth walking between devices. Locate any energized conductive path - iron, steel and copper water lines, gas lines, tracer wire by plastic pipe, telephone/TV cables, copper and aluminum wire, conduit, power lines and Duct Hunter™ Traceable Rodders.
Featuers:
- Intuitive keypad simplifies the user interface
- Multi-channel processor for simultaneous field detection ensuring accuracy
- Customizable frequencies and operational modes
- Four (4) active frequencies: 512 Hz, 8 kHz, 33kHz, 82 kHz
- Two (2) passive frequencies: 60 Hz power and RF
- Three (3) operating modes: peak, null and sonde
- Automatic Impedance Matching Technology: maximizes your transmission range while minimizing power consumption
- Remotely controls your transmitter from the receiver to more than 400 yards
- Constant Depth & Current Measurement: real time updates on line depth and signal condition
- Equipped with Rechargeable Battery, conductive clips, manual, and a Padded Protective Carrying Case

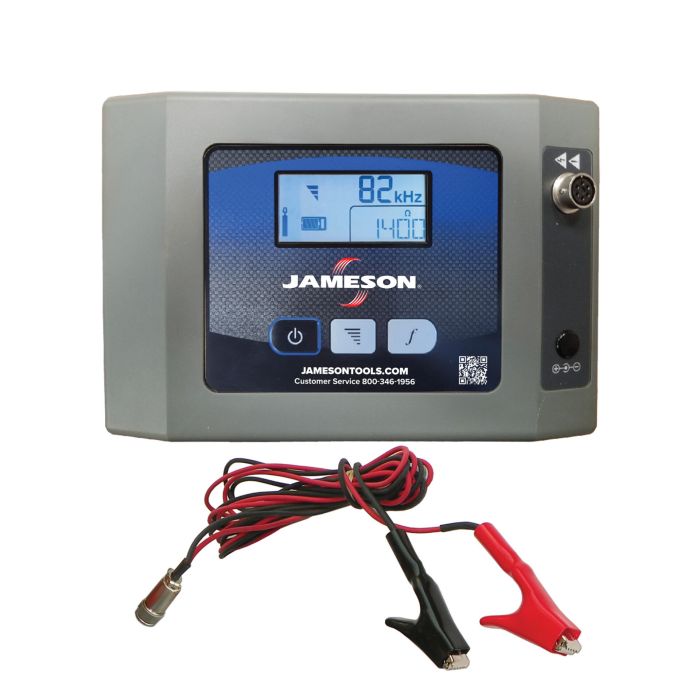

Jameson 17-500T Digital Transmitter for Energizing Conductive Paths
The Jameson 17-500T Digital transmitter energizes conductive paths and supports Jameson's receivers. Includes 3 Power Settings, Low and Medium Frequencies for direct connect long runs and higher frequencies for tracing Duct Hunter™ rod in plastic pipes or inductive modes. Comes with 8 “C” Cell Batteries, Ground Spike, Wire Leads, and Carrying Case.
Featuers:
- Lightweight unit with easy-to-read high contrast LCD screen
- IP65 Dust and Water Resistant Rated
- Indicators : AC load assistance measurement, relative ohms, voltage, live voltage output, current output, power level, frequency, mode, battery indication alert, low battery indicator audio/visual with modulated low battery warning transmitted to receiver.
- Operating Temperature : -4° F to 133° F (-20° C to 55° C)
- Active frequencies: 512 Hz, 8 KHz, 33KHz & 82 KHz, 1 Watt Max
- Carrying case, batteries, ground spike and wire leads included
- Made in USA
