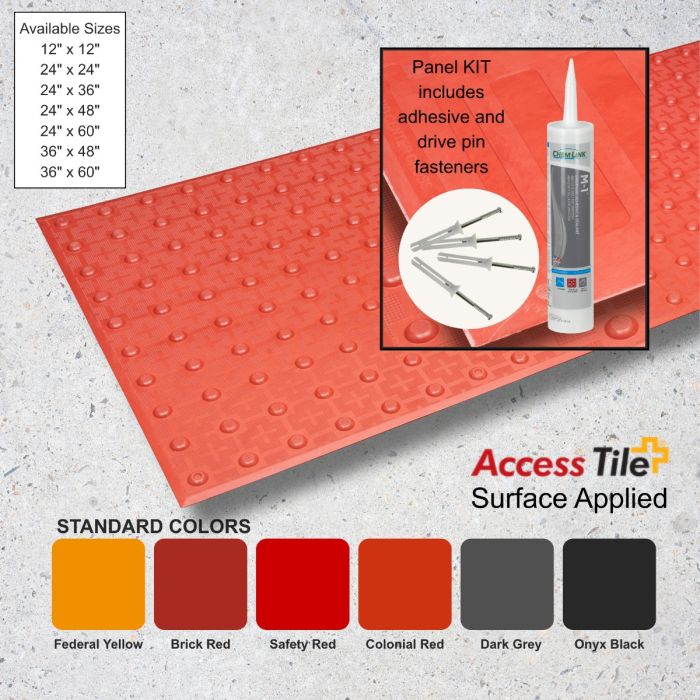

Access Tile Surface Applied Detectable Warning Tile
Product Code:
ACC-S-ACCESS-TILES
Access Tile Surface Applied detectable warning tile (TWSI). ADA-compliant truncated domes, multiple sizes, multiple colors. Slip, corrosion and abrasion resistant; retrofits to existing concrete with adhesive and stainless-steel fasteners. Model ACC-S-SA. View More
As low as:
$72.45
As low as:
- 10+
Estimate Shipping
Loading...
Description
The Access Tile Surface Applied Detectable Warning Tile (multiple sizes, multiple colors) is a low-cost, ADA-compliant truncated dome tile that retrofits into any existing concrete surface using surface-applied adhesive, anchors and stainless-steel pins. It offers the fastest, most environmentally conscious installation and replacement in the industry and can be cut on-site to conform to any project shape without voiding the warranty.
Key features
- High-density Diamond Grip pyramid micro-texture for exceptional slip resistance in wet and dry conditions
- Tamper-proof, countersunk stainless-steel Axius fasteners set flush with the dome surface
- Audible detectability engineered for sound amplification to aid guidance-cane navigation
- Consistent dome spacing when tiles are adjoined side-by-side or end-to-end
- Integral UV-stable homogeneous color throughout the tile
- Slip, corrosion and abrasion resistant; tested to AASHTO HS20-44 wheel load
Specifications
| Product Type | Surface Applied Tactile Walking Surface Indicator (TWSI) |
|---|---|
| ADA Compliance | ADA, PROW and California Title 24 compliant |
| Tile Size | multiple sizes |
| Color | multiple colors () |
| Truncated Dome Spacing | 2.35" center-to-center, in-line |
| Dome Dimensions | 0.9" base diameter, 0.45" top diameter |
| Surface | Diamond Grip pyramid micro-texture, slip resistant (wet and dry) |
| Fasteners | Tamper-proof countersunk stainless-steel Axius fasteners (color-matched) |
| Color Stability | Integral UV-stable homogeneous color throughout |
| Load Rating | AASHTO HS20-44 wheel load tested |
| Installation | Retrofit to existing concrete with adhesive, anchors and pins |
| Piece Weight | varies lb |
| Pieces per Box | 16 |
In the box
- Detectable warning tile
- Surface-applied adhesive
- Color-matched stainless-steel fasteners
- Installation instructions
Model: ACC-S-SA
