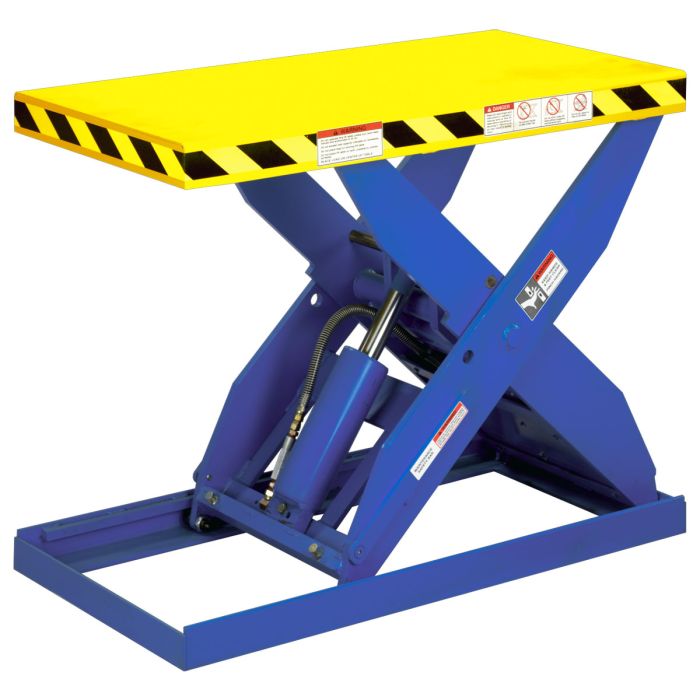

Ballymore Max Stand Scissor Lift Table 2k Capacity - 43" Lift Height

Product Code:
Max_Stand_43R_2K_Capacity_43"_Lift_Height
The best value in lift tables with unparalleled features! Reduces awkward bending and lifting since the work load is always at the correct level. The possibility of back injuries is also reduced and productivity is increased. View More
Table Width*
Table Length*
Controls*
As low as: $4,095.90

Ballymore Max Stand Scissor Lift Table 2k Capacity - 43" Lift Height

Model Number Table Width Table Length Lowered Height Raised Height Capacity
BM-MS-2K-43R-2448-H 48" 24" 7-1/4" 43" 2,000 lbs
BM-MS-2K-43R-3648-H 48" 36" 7-1/4" 43" 2,000 lbs
BM-MS-2K-43R-4848-H 48" 48" 7-1/4" 43" 2,000 lbs
BM-MS-2K-43R-3660-H 60" 36" 7-1/4" 43" 2,000 lbs
BM-MS-2K-43R-3672-H 72" 36" 7-1/4" 43" 2,000 lbs
BM-MS-2K-43R-4872-H 72" 48" 7-1/4" 43" 2,000 lbs
BM-MS-2K-43R-2448-F 48" 24" 7-1/4" 43" 2,000 lbs
BM-MS-2K-43R-3648-F 48" 36" 7-1/4" 43" 2,000 lbs
BM-MS-2K-43R-4848-F 48" 48" 7-1/4" 43" 2,000 lbs
BM-MS-2K-43R-3660-F 60" 36" 7-1/4" 43" 2,000 lbs
BM-MS-2K-43R-3672-F 72" 36" 7-1/4" 43" 2,000 lbs
BM-MS-2K-43R-4872-F 72" 48" 7-1/4" 43" 2,000 lbs
Description

The best value in lift tables with unparalleled features! Reduces awkward bending and lifting since the work load is always at the correct level. The possibility of back injuries is also reduced and productivity is increased.

Features:

  • Internally mounted 1.5 HP 115/230V-I-60 or 230/460-3-60 intermittent duty TENV super torque motor
  • 115V operating control voltage
  • NEMA constant pressure. Magnet backed up-down push button control station with 10' straight or coiled cord.
  • All controller components meet UL and/or CSA specifications.
  • Cylinders with internal stops.
  • 10' power cord (connector not included)
  • Integral safety restraint maintenance bars.
  • S.A.E. hoses and fittings.
  • NEMA - 1 prewired controls and electrical connectors. Control box contains contactor, control transformer, thermal overload and fuse.
  • Hard, chrome plated, polished shafting hydraulic cylinder piston rods.
  • Surfaces degreased, descaled and finished with Safety Yellow and Blue enamel.
  • Smooth steel top with yellow and black safety strips.
  • Internal gear pump with check valve, relief valve, solenoid valve.
  • Includes hydraulic oil and filter.

Specifications
Capacity 2,000 lbs
Cylinders 1
Up Speed 9 sec
