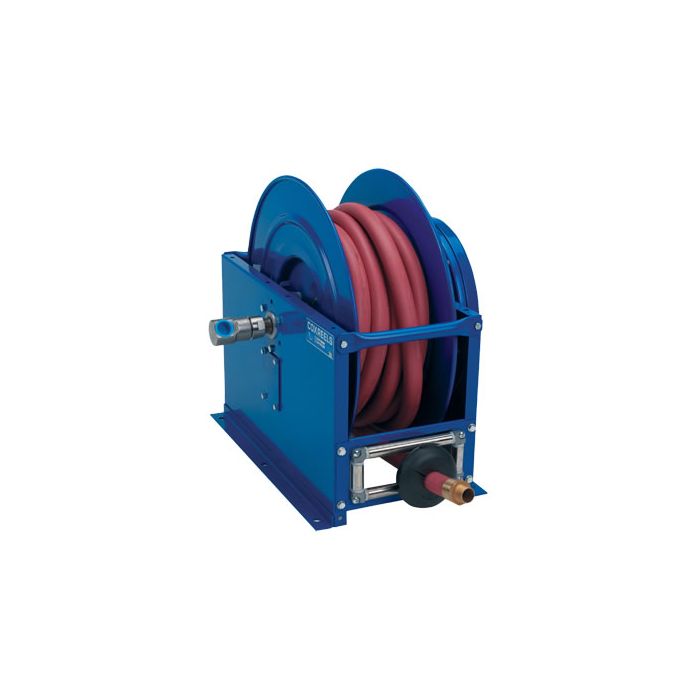

Coxreels SP Series Large Diameter Medium Pressure Spring Driven Hose Reels
Product Code:
Cox_SP_Series_Large_Diameter_Medium_Pressure_Hose_Reels
{"delivery":{"38179":null,"38179_bank":{"shipping":63},"38179_bank_range":{"shipping":78},"cutoftime":false,"holidays":["2026-07-18","2026-07-19","2026-07-25","2026-07-26","2026-08-01","2026-08-02","2026-08-08","2026-08-09","2026-08-15","2026-08-16","2026-08-22","2026-08-23","2026-08-29","2026-08-30","2026-09-05","2026-09-06","2026-09-12","2026-09-13","2026-09-19","2026-09-20","2026-09-26","2026-09-27","2026-10-03","2026-10-04","2026-10-10","2026-10-11","2026-10-17","2026-10-18","2026-10-24","2026-10-25","2026-10-31","2026-11-01","2026-11-07","2026-11-08","2026-11-14","2026-11-15"]},"shipping":{"38179":{"from":"2026-11-18 12:28:09","to":"2026-12-03 12:28:09","text":"","enable":3,"to_origin":"60","from_origin":"45"},"38179_bank":63,"38179_bank_range":78,"cutoftime":false,"holidays":["2026-07-18","2026-07-19","2026-07-25","2026-07-26","2026-08-01","2026-08-02","2026-08-08","2026-08-09","2026-08-15","2026-08-16","2026-08-22","2026-08-23","2026-08-29","2026-08-30","2026-09-05","2026-09-06","2026-09-12","2026-09-13","2026-09-19","2026-09-20","2026-09-26","2026-09-27","2026-10-03","2026-10-04","2026-10-10","2026-10-11","2026-10-17","2026-10-18","2026-10-24","2026-10-25","2026-10-31","2026-11-01","2026-11-07","2026-11-08","2026-11-14","2026-11-15"]},"dateFormat":"MM\/dd\/yy","created_at":"2026-09-16 12:28:09"}
SP Series "Single Product Delivery" spring driven hose reels are built to handle large hose diameters. Used in applications demanding large volume delivery in medium pressure such as fuel and water. View More
Estimate Shipping
Loading...
Coxreels SP Series Large Diameter Medium Pressure Spring Driven Hose Reels
| Model Number | Hose Included | Hose I.D. | Hose O.D. | Hose Length | Max PSI | Price | Qty |
|---|---|---|---|---|---|---|---|
| SMPL-625 | No | 1" | 1-3/8" | 25' | 2,000 |
$787.00
|
|
| SMP-550 | Yes | 3/4" | 1-1/16" | 50' | 1,500 |
$1,146.85
|
|
| SMPL-5100 | No | 3/4" | 1-1/16" | 100' | 1,500 |
$1,034.21
|
|
| SMPL-550 | No | 3/4" | 1-1/16" | 50' | 1,500 |
$792.29
|
|
| SMP-5100 | Yes | 3/4" | 1-1/16" | 100' | 1,500 |
$1,598.18
|
|
| SMP-4100 | Yes | 1/2" | 13/16" | 100' | 2,500 |
$1,186.92
|
|
| SMPL-675 | No | 1" | 1-3/8" | 75' | 2,000 |
$1,015.31
|
|
| SMPL-575 | No | 3/4" | 1-1/16" | 75' | 1,500 |
$972.97
|
|
| SMPL-4100 | No | 1/2" | 13/16" | 100' | 2,500 |
$786.24
|
|
| SMPL-650 | No | 1" | 1-3/8" | 50' | 2,000 |
$867.89
|
|
| SMP-575 | Yes | 3/4" | 1-1/16" | 75' | 1,500 |
$1,385.75
|
|
Description
SP Series "Single Product Delivery" spring driven hose reels are built to handle large hose diameters. Used in applications demanding large volume delivery in medium pressure such as fuel and water. The sturdy box-style frame has heavy duty steel cross supports to all four corners for extra strength and rigidity.
Features:
- External fluid paths with machined from solid brass 90° full-flow NPT swivel inlets
- Swivel Seals: NITRILE (AFLAS on 1" models)
- Electroless nickel plated steel swivel on 1" models
- Straight in-line aluminum swivel on 1-1/2" models
- Reel features a sturdy box-style frame design
- Reel adjusts to wall, floor, vehicle & overhead positions
- Heavy gauge 1/4" steel base for maximum strength
- Reinforced steel frame provides maximum strength & stability
- Long lasting self-lubricated flange bearings for smooth rotation
- Heavy duty 1" stainless steel pinch-proof rollers
- Enclosed factory tuned & matched cartridge-style spring motor
- Non corrosive stainless steel pawl spring
- Cast iron lock ring with non-sparking bronze pawl
- Multi-position lock ratchet mechanism secures hose at desired length
- Professional grade heavy duty steel construction
- Durable proprietary CPCâ„¢ powder coat finish
- CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
- Industry leading 2 year manufacturer's limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
