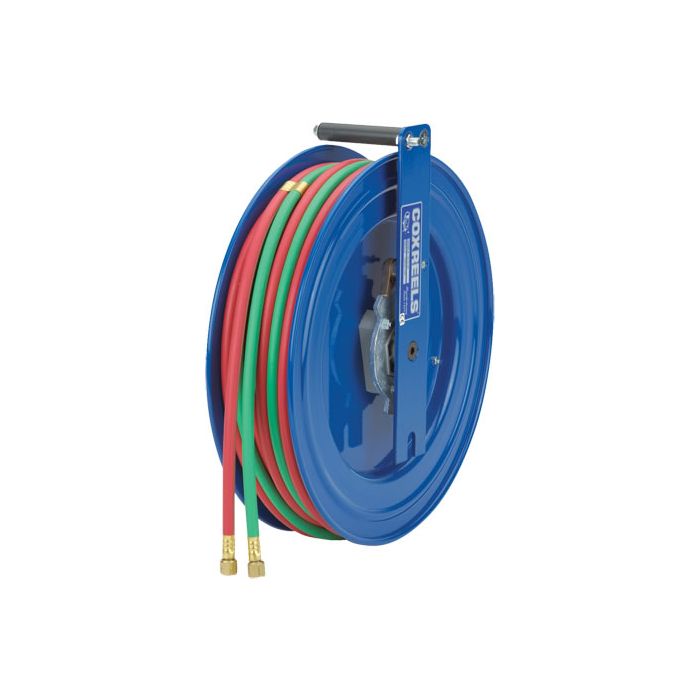

Coxreels SW Series Oxygen Acetylene Spring Driven Hose Reels without Hoses
SW Series "Side Mount" spring driven hose reels for cabinet mount are compact, versatile and unique in the way they mount and operate. They feature a simple two-bolt mounting pattern for easy installation and detachment for multiple workstation applications. These SW Series are for oxy-acetylene welding hose. The 360° hose direction allows the user to operate the reel in any direction the job demands. Common applications include service units, tool benches, tool boxes, vertical walls and beams, vehicle lift systems, machine tools, service vehicles or any flat vertical surface.
Features:
- External fluid path with 90° full-flow dual ported brass swivel offering both connections from the same side of the reel
- Swivel Seals: VITON®
- Designed for Oxy-Acetylene welding hose
- Side mount design for vertical flat surface, cabinet or enclosed space mounts
- 2-bolt mounting pattern easily mounts & detaches for temporary or permanent installation
- Solid one piece, heavy gauge 1/4" steel arm base for maximum stability
- 1" solid steel axle & lubricated precision bearings for smooth rotation
- Hose control bar prevents hose from slipping off the discs
- Enclosed factory tuned and matched cartridge-style spring motor
- Non corrosive stainless steel spring, pawl and zinc plated ratchet
- Multi-position non-sparking lock ratchet mechanism secures hose at desired length.
- Non-locking, less ratchet option available (add suffix –BXC)
- Professional grade heavy duty steel construction
- Durable proprietary CPC™ powder coat finish
- CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
- Industry leading 2 year manufacturer's limited warranty
- Made in the U.S.A. – Sold & Supported Worldwide
Note: Do not exceed listed hose O.D. to obtain maximum length.
WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
