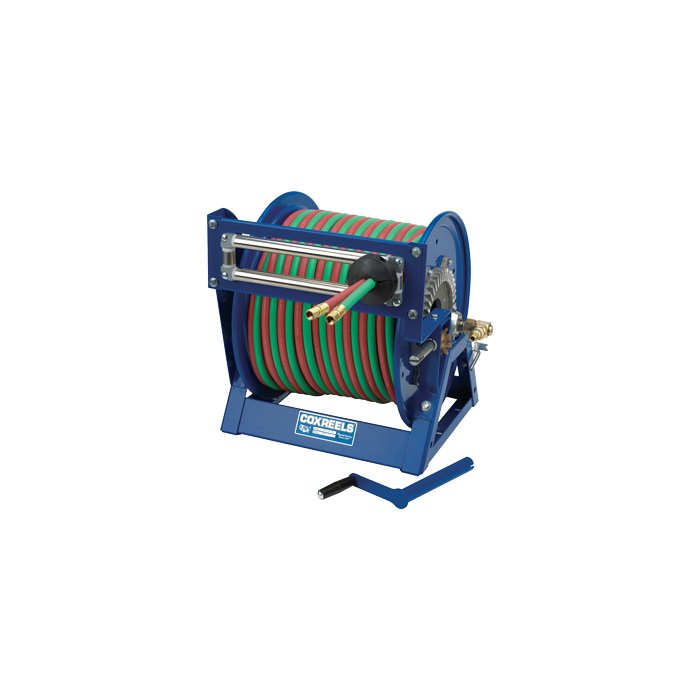

Coxreels 1275W Series Welding Double Hose Reels

star-grey star-grey star-grey star-grey star-grey Add Your Review
Product Code:
Coxreels_1275W_Series_Welding_Double_Hose_Reels
1275W Series hand crank "Welding" hose reels are built to manage long lengths of bulky twin line welding hose. The direct bevel gear drive, low profile outlet riser and open drum slot design are features greatly appreciated by the regular user. Dual brass swivel inlets on each side of the reel assure full flow trouble free performance. View More

Scroll down to the table below or click the Choose Options button to select a model to add to your cart/quote

Coxreels 1275W Series Welding Double Hose Reels

Grouped product items
Model Number Hose Included Hose O.D. Hose Length Max PSI Price Qty
1275W-3-150-C Yes N/A 150' 200
$1,050.84
1275WT-3-100-C Yes N/A 100' 200
$1,044.79
1275WL-3-100-C No N/A 100' 200
$645.62
1275WL-3-350-C No N/A 350' 200
$695.52
1275W-3-100-C Yes N/A 100' 200
$931.39
1275WL-3-250-C No N/A 250' 200
$681.91
1275W-3-250-C Yes N/A 250' 200
$1,346.44
1275WT-3-250-C Yes N/A 250' 200
$1,608.77
1275WL-3-150-C No N/A 150' 200
$656.21
1275WT-3-150-C Yes N/A 150' 200
$1,223.21
Description

1275W Series hand crank "Welding" double hose reels are built to manage long lengths of bulky twin line welding hose. The direct bevel gear drive, low profile outlet riser and open drum slot design are features greatly appreciated by the regular user. Dual brass swivel inlets on each side of the reel assure full flow trouble free performance.

Features:

  • Two external fluid paths with machined from solid brass 90° full-flow 3/8" NPT swivel inlets (one on each side of the reel)
  • Swivel Seal: VITON®
  • All welded steel "A" frame construction for superior reel structure
  • Exclusive low profile outlet risers & open drum slot design for flat smooth hose wrap
  • Permanently lubricated self-aligning pillow block bearings for trouble-free & smooth rotation
  • Bevel gear hand crank rewind
  • Professional grade heavy duty steel construction
  • Durable proprietary CPCâ„¢ powder coat finish
  • CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
  • Industry leading 2 year manufacturer's limited warranty
  • Made in the U.S.A. – Sold & Supported Worldwide
