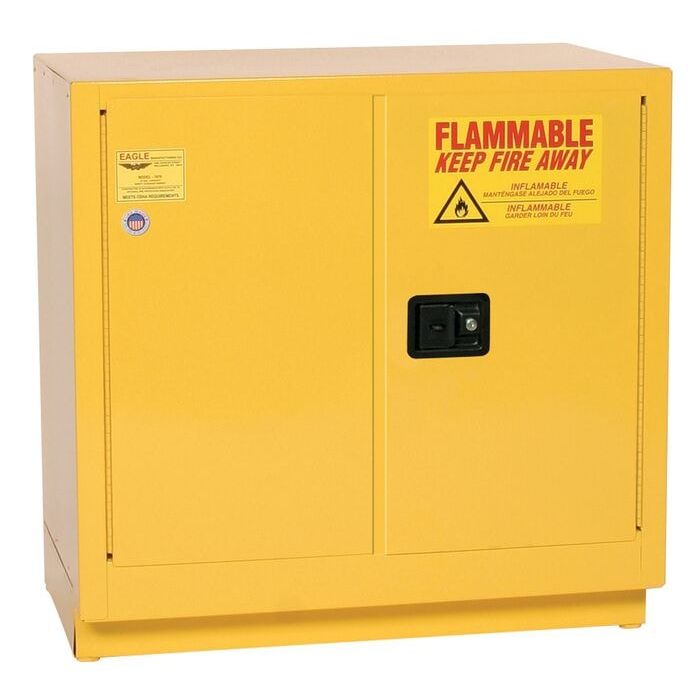

Eagle 22 Gallon Fire Cabinet | 1 Shelf | 2 Doors | Self Close | Under Counter | Yellow - 1970X

The Eagle 22 Gallon Fire Cabinet, 1 Shelf, 2 Doors, Self Close, Under Counter, Yellow - 1970X. 22 Gallon, self-closing, Under Counter Flammable Liquid Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.

Key features

• Reinforced double wall construction with 1-1/2 in (3.8 cm) air space on sides, top, bottom, back and doors
• Constructed of 18-gauge steel
• Lead-free, high-gloss, baked-on powder finish
• Continuous piano hinges
• Ground connection
• Four adjustable galvanized leveling legs
• Trilingual warning labels
• 2 in (5.1 cm) raised leakproof sill
• Patented adjustable galvanized steel shelves direct spills to back and bottom of leakproof sump and hold 350 lbs. (158.8 kg) Uniform Distributed Load (UDL)
• Internal and external welded construction
• Two 2 in (5.1 cm) internal vents with fire baffle and cap
• Flush mounted door handle with key lock
• Three-point stainless steel bullet latching system
• 3 in (7.6 cm) centers for shelf brackets
• Self-latching doors
• Door closings: Self-Closing (135° opening)
• Concealed self-close mechanism provides obstruction-free access to top shelf space
• Self-indexing doors guarantee they will close in sequence and ensure a tight closure from top to bottom

Specifications

Model: 1970X
