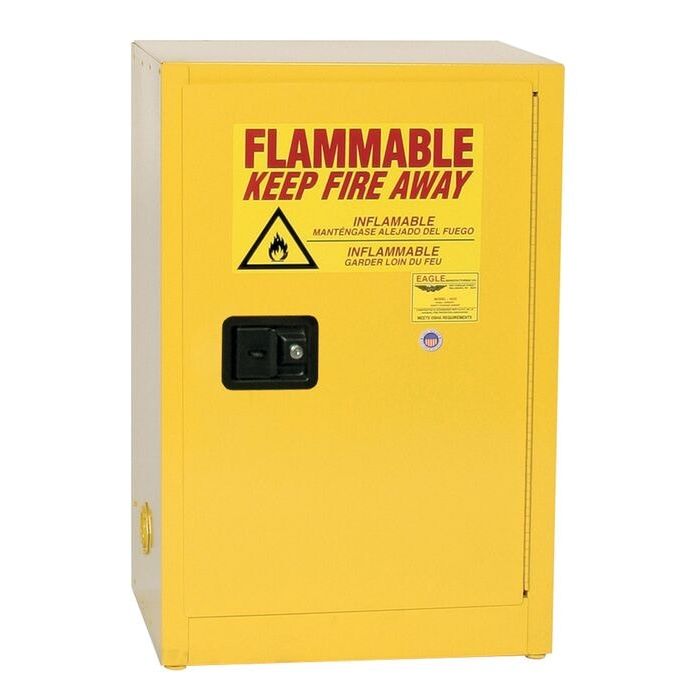

Eagle Compac Flammable Safety Cabinet | Self-Close | Yellow
Eagle Compac Flammable Safety Cabinet | Self-Close | Yellow
| Model Number | Capacity | Door Type | Color |
|---|---|---|---|
| 1924X-EAGLE | 12 Gallon | Self Close | Yellow |
| 1905X-EAGLE | 16 Gallon | Self Close | Yellow |
The Eagle Compac Flammable Safety Cabinet series. 12 Gallon, self-closing, Space Saver Flammable Liquid Safety Cabinet is constructed of 18-gauge (1 mm) steel. The sides, top, bottom, and doors are double-walled with a 1-1/2 in (3.8 cm) air space between walls. Includes two vents, each have 2 in (5.1 cm) threaded fittings and a fire baffle and cap. Cabinets have a high gloss powder coat finish with red trilingual warning, plus grounding attachment, 3-point latch system, and 2-in (5.1 cm) raised, leakproof door sill. Each shelf is adjustable on 3 in (7.6 cm) centers, supported by 4 brackets, with a 350 lbs (159 kg) safe allowable load. Cabinets are FM-Approved and meet NFPA Code 30 and OSHA requirements.
Compare models in this series
| Model | Capacity | Doors | Shelves | Interior Dimensions | Weight | Door Type |
|---|---|---|---|---|---|---|
| 1924X | 12 gal | 1 | 1 | 20" W x 14.6" D x 30.5" H (50.8 x 37 x 77.5 cm) | 100 lb | Self-Close |
| 1905X | 16 gal | 1 | 1 | 20" W x 14.6" D x 39.5" H (50.8 x 37 x 100.3 cm) | 119 lb | Self-Close |
Available capacities
- 12 gal - Model 1924X (Self-Close, Yellow)
- 16 gal - Model 1905X (Self-Close, Yellow)
Full specifications by model
| Specification | 1924X 12 gal | 1905X 16 gal |
|---|---|---|
| Model No | 1924X | 1905X |
| Color | Yellow | Yellow |
| Brand | Eagle | Eagle |
| Material Specifications | 18-Gauge Steel | 18-Gauge Steel |
| FM Approval | Yes | Yes |
| OSHA Compliance | Yes | Yes |
| Complies with NFPA Code 30 | Yes | Yes |
| Door Style | Self-close | Self-close |
| UPC | 48441690190 | 48441690473 |
| Number of Doors | 1 | 1 |
| Number of Shelves | 1 | 1 |
| Uniform Fire Code | Yes | Yes |
| Lock | Yes | Yes |
| Capacity | 12 gallon | 16 gallon |
| Gallon Capacity | 12 | 16 |
| Replacement Shelf Model No. | 29936 | 29936 |
| Pallet Quantity | 1 | 1 |
| Shelf Depth | 14" (35.6 cm) | 14" (35.6 cm) |
| Net Weight, lbs | 100 | 119 |
| Adjustable Shelf | Yes | Yes |
Select a capacity above to add the item to your cart. All models comply with NFPA Code 30 and OSHA requirements for flammable liquid storage.
| Color | Yellow |
|---|---|
| Door Type | Self Close |
