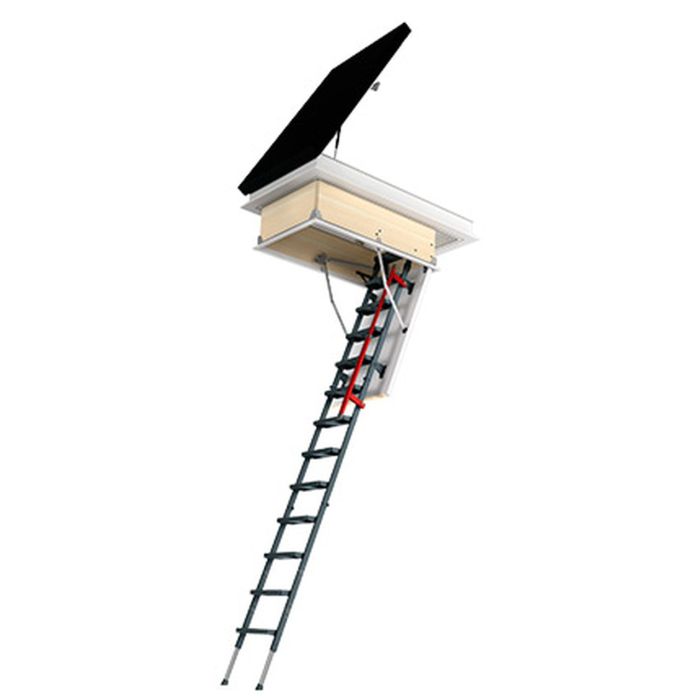

Fakro LML Insulated Steel Attic Ladder and DRL Roof Hatch Combo
Product Code:
Fakro_LML_Attic_Ladder_DRL_Roof_Hatch_Combo
Create access to your rooftop with the LML Attic ladder and DRL Roof Hatch Combo Kit View More
As low as:
$3,576.85
As low as:
Description
Attic Ladder
Designed for Increased Comfort, the LML is a metal, three-section folding attic ladder with piston-assisted unfolding. Adjusting the ladder length to the ceiling height is simplified with adjustable stile ends.
Features:
- Telescopic Stile Ends
- White Hatch - Plastic Catch
- Finishing Lining Slats
- Peripheral Gasket
- Non-Slip Steps
- Ladder Unloading Mechanism, Built In Handrail
- Quick Installation In The Ceiling - Installation Brackets
- Additional Accessories Available
- Fully Assembled And Ready For Quick Installation In The Ceiling
- 2 Year Warranty
Specs:
- Maximum Loading: 350 lbs
- Loft Ladder Hatch U-Value: 0.19 BTU/h ft2F
- Insulation Thickness: 1.125
- Hatch Thickness: 1.375
- Norm Requirements: EN 14975
- Attic Ladder R-Value: 5.2
Roof Hatch
The DRL Flat Roof Metal Hatch with 27-1/2" x 59-1/2" opening is an insulated metal hatch for accessing a flat roof. It can be combined with the LML wide-step metal attic ladder or any FAKRO attic ladder for ease of access. The piston-assisted hatch stays open at a 80-degree angle while anti-slip covers on the frame ensure safe footing.
Features:
- 27-1/2" x 59-1/2" Opening
- mounted on the roof surface
- the whole structure is insulated
- Includes insulated multi-chamber PVC curb and gas springs
- Anti-slip tape on the base ensures safe access to the flat roof
- The sash can be opened up to 80°
- Intended for roofs with pitches between 0° and 5°
- Can be mounted on an additional XRD base with a height of 5.9", for installation in green and living roofs
- Option to install an additional ZBR lock which protects against accidental closure of the sash
- Recommended in combination with the LML attic ladder of the same size
- 10-year warranty
Specifications
| Fire Rated? | No |
|---|
