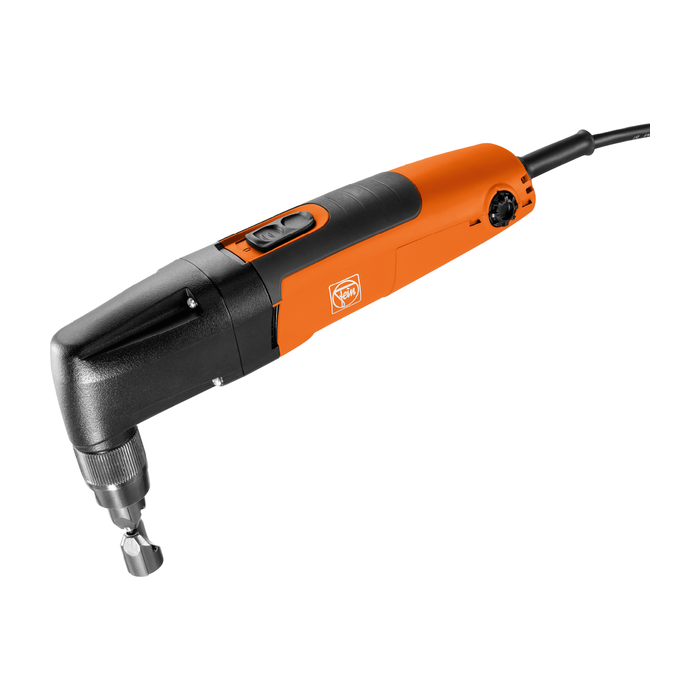

Fein 72323860120 BLK 1.6 E Nibbler up to 16 Gauge
Universal nibbler for sheets, profiles, trapezoid and corrugated sheet metal. View More
Fein 72323860120 BLK 1.6 E Nibbler Up To 16 Gauge
Universal nibbler for sheets, profiles, trapezoid and corrugated sheet metal.
Features:
- Virtually indestructible. Ideal for flexible and universal use with sheet thickness up to 16 gauge [1.6 mm].
- Optimum ergonomics, including a motor housing that is up to 20% slimmer due to an extremely narrow drive head.
- Cutting direction setting can be changed in 45° increments up to 360° using tool-free rotating cutting head.
- QuickIN rapid change system.
- High cutting speed.
- Rotating punch for up to 30% longer service life.
- Low operating costs due to long tool life of punch and die.
- Motor with outstanding performance and durability.
- Chip protection mesh on vent slots.
- 16 ft. [5 m] cable.
- Stainless steel up to 22 gauge [0.7 mm].
- Retrofittable trapezoid profile set up to 6-5/16 in [160 mm] deep channels.
Includes:
- 1 die (3 01 09 141 00 3)
- 1 punch (6 36 02 048 00 4)
Specs:
- Power consumption: 350 W
- Power output: 210 W
- Strokes: 800 - 1,500 spm
- Cutting speed: 6.2 [1.9] ft/min[m/min]
- Steel 56,000 lbf/in²: 16 [1.6] gauge[mm]
- Steel 84,000 lbf/in²: 19 [1.0] gauge[mm]
- Steel 112,000 lbf/in²: 22 [0.7] gauge[mm]
- Non-ferrous metals up to 35,000 lbf/in²: 13 [2.5] gauge[mm]
- Cutting width: 3/16 [5] in[mm]
- Immersion Ø with die: 7/8 [22] in[mm]
- Radius of smallest curve (inside/outside): 1-1/4 [30] / 1-1/2 [35] in[mm]
- Cable with plug: 16.4 [5] ft[m]
- Weight according to EPTA: 3.97 [1.80] lbs[kg]
- Sound pressure level LpA: 82 dB
- Measurement uncertainty of the measured value KpA: 3 dB
- Sound power level LWA: 93 dB
- Measurement uncertainty of the measured value KWA: 3 dB
- Peak sound value LpCpeak: 93 dB
- Measurement uncertainty of the measured value KpCpeak: 3 dB
- Vibration value 1 αhv 3-way: 8,8 m/s²
- Measurement uncertainty of the measured value Kα: 1,5 m/s²
Weight(LBS) | 6.360000 |
---|
