Genie GH-5.6 - Genie Super Hoist 18' 4.5" Lift Height - 250lb Rated
- 10+
Estimate Shipping
Description

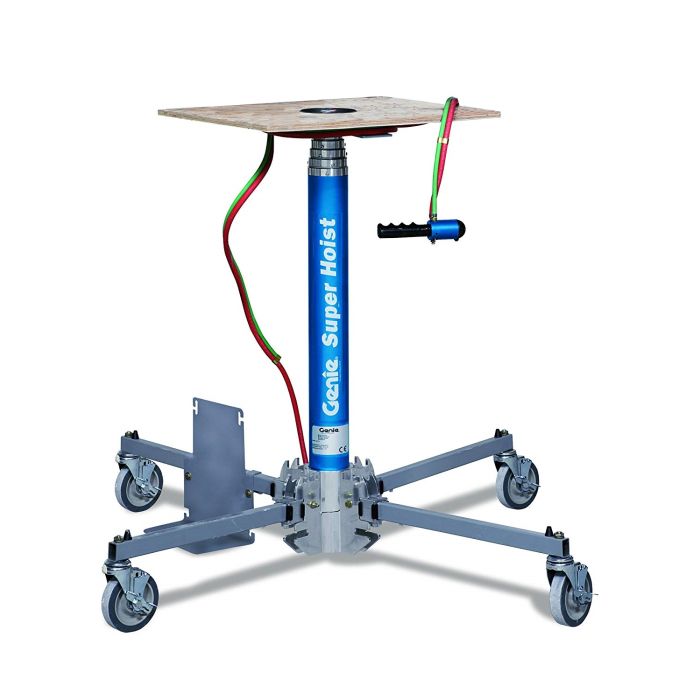

The Genie GH-5.6 Super Hoist raises 350 lb at 12 ft 5.6 in and 150 lb at full height to a maximum lift height of 18 ft 4.5 in, powered by CO2 or compressed air (85 psi recommended) - no electric motor and no cords. At just 69 lb, one person can carry, position, and operate it for overhead installs of duct, pipe, and fixtures.
The auto-lubricating cylinder keeps operation smooth, the patented control handle runs up, down, and the dump valve from one grip, and the one-piece platform removes with a twist of the wrist. Fold-up legs, braking casters, and 8 in non-marking wheels make it storage- and van-friendly; add the optional 20200GT platform cradle (sold separately) for cradled loads.
- 350 lb (150 lb at full height) capacity to 18 ft 4.5 in
- Runs on a CO2 bottle (not included) or shop air - 85 psi recommended
- No electric motor - air-only operation
- 69 lb; stows to 4 ft 6 in tall with fold-up legs
- Removable one-piece platform; patented up/down/dump control handle
- Optional platform cradle accessory available (20200GT, sold separately)
| Maximum lift height | 18 ft 4.5 in |
| Load capacity | 350 lb (150 lb at full height) |
| Power | CO2 or compressed air (85 psi recommended) |
| Unit weight | 69 lb |
| Stowed height | 4 ft 6 in |
| Standards | ANSI A92.20, CSA B354.6 |
Industrial Products is an authorized Genie dealer. The Super Hoist is compact enough to ship via UPS - no freight carrier or loading dock needed; order online or call our lift experts for volume pricing.
Specifications
| Lifting Capacity | 350 lbs / 150 lbs at full height |
|---|---|
| Power | CO2 |
| Lifting Height | 18' 4.5" |
| Feature | CO2 Powered |
