Genie Lift GL-10S Lift Height 11' 8" - 350lb Rated - Straddle Base Model
- 10+
Estimate Shipping
Description

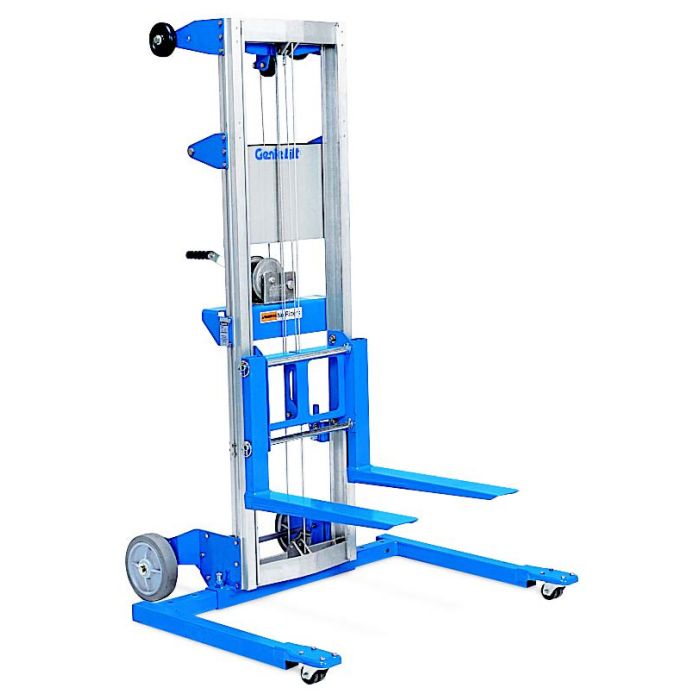

The Genie GL-10 material lift raises up to 350 lb to a maximum lift height of 11 ft 8 in. At just 149 lb with the straddle base, one person can move it through a standard single doorway, load it into a pickup truck, and set it up in minutes - no batteries, no charging, no tools.
The adjustable straddle base spans loads or fixed obstacles up to 36 in wide - ideal for lifting over pallets and appliances. Contractors use the GL-10 for HVAC components, cabinetry, shelving stock, ductwork, and shop equipment; the hold-down mechanism secures the carriage during transport and the reversible winch handle stows flat.
- Manual hand-winch drive - approx. 11.5 cranks per foot of lift
- Rolls through a single standard doorway
- Loads easily into a pickup bed for transport
- Steel forks 22.5 in long; optional boom and load platform available, sold separately
- 8 in non-marking rear wheels with 2 in front swivel casters
| Maximum lift height | 11 ft 8 in |
| Load capacity (14 in load center) | 350 lb |
| Unit weight | 149 lb |
| Base | Straddle Base |
| Winch | Standard manual, reversible handle |
| Fork length | 22.5 in |
| Doorway compatible | Yes - single standard door |
Industrial Products is an authorized Genie dealer. Every lift ships via LTL freight with liftgate delivery available; order online or call our lift experts for a freight quote or volume pricing.
Specifications
| Lifting Capacity | 350 lbs |
|---|---|
| Power | Manual |
| Lifting Height | 11' 8" |
| Feature | Straddle Base |
