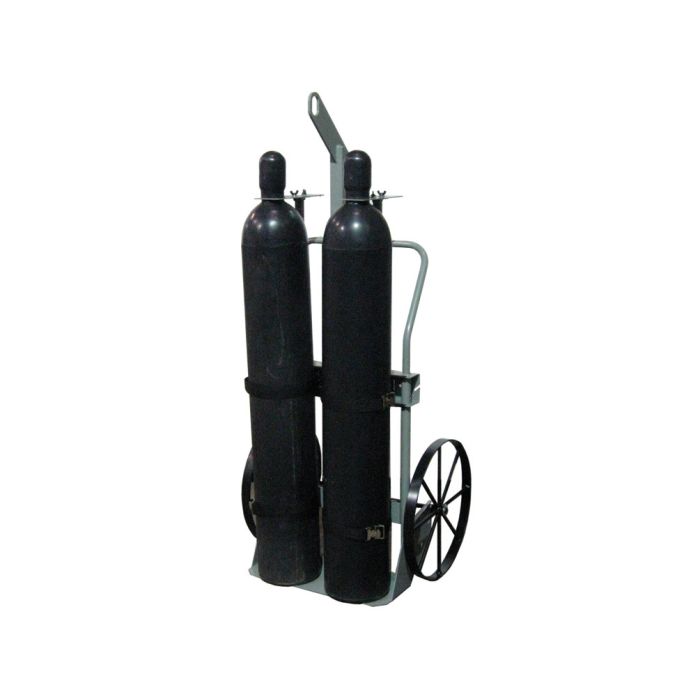

Justrite 35018 Double Cylinder Hand Truck with Hoist Ring and 20" Steel Wheels

Justrite 35018 Double Cylinder Hand Truck with Hoist Ring and 20" Steel Wheels

Move gas cylinders easily around a construction site, into locations with poor accessibility, or from floor to floor with these hoist-equipped hand trucks. Designed for a pair of cylinders (usually oxy-acetylene) common in welding applications, up to 13-in (330-mm) and 10-in (254-mm) in diameter, respectively.Fully welded construction using 1.25-in (32-mm) diameter round steel tube, these durable cylinder hand trucks provide optimum safety, strength, and longevity. Floor plate made of thick 11-gauge (3-mm) steel with safety fins prevents warping or breaking. Extensive structural framing with 0.375-in (10-mm) thick hoist plates make these units safe when lifted by hoist rigs. Triple grip handle design helps user control the high center of gravity by expanding available grip area for improved leverage and swing radius. The zero-lift height loading allows floor plate to lay flat, thereby eliminating the need to lift cylinder during loading and unloading. Corrosion-resistant powder-coat finish throughout for long life and smooth handling.

Two heavy-duty 1.5- x 54-in (38-mm x 1372-mm) polypropylene support straps, lab tested to 1138-lb (516-kg), feature steel cinch buckles for secure attachment of cylinder—eliminate any cylinder rolling potential seen in chain-secured units. Exclusive bumper guard edging grips cylinder and minimizes damage to cylinder and hand truck. Triple grip handle design helps user control the high center of gravity by expanding available grip area for improved leverage and swing radius.

Accessorize hand trucks with a tool tray or lockable tool box for securing torches and other equipment.

Developed for the US Navy for use on submarines.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Features:

• Locking posts and collar plates ensure total cylinder immobilization
• Configured with 20-in (508-mm) steel wheels with dual ball bearings for easier rolling—less effort required
• Rated at 600-lb (136-kg) weight capacity

Specs:

• Model No.: 35018
• Cylinder Capacity: 2
• Minimum Cylinder Diam (in): 5
• Cylinder Capacity with Max Cylinder Dia: (1) 10 inch and (1) 13 inch
• Hoist Ring Equipped: Yes
• Locking Post Equipped: Yes
• Main Wheel Type: Steel
• Main Wheel Size (inch): 20
• Main Wheel Size (mm): 508
• Weight Capacity (lb): 600
• Weight Capacity (kg): 272
• Strap Style: Poly Cinch Strap with Steel Buckle and Chain
• Straps Per Cylinder: 2
• Material Specifications: Steel
• Complies with NFPA 1 Fire-Code: Yes
• NFPA 55: Yes
• OSHA Compliance: Yes
• CGA: Yes
• Net Weight, lbs: 96
• Net Weight, kg: 44
• Net Dimensions (W x D x H): 32 x 28 x 69" / 813 x 711 x 1753 mm

* Note: Tanks not Included
