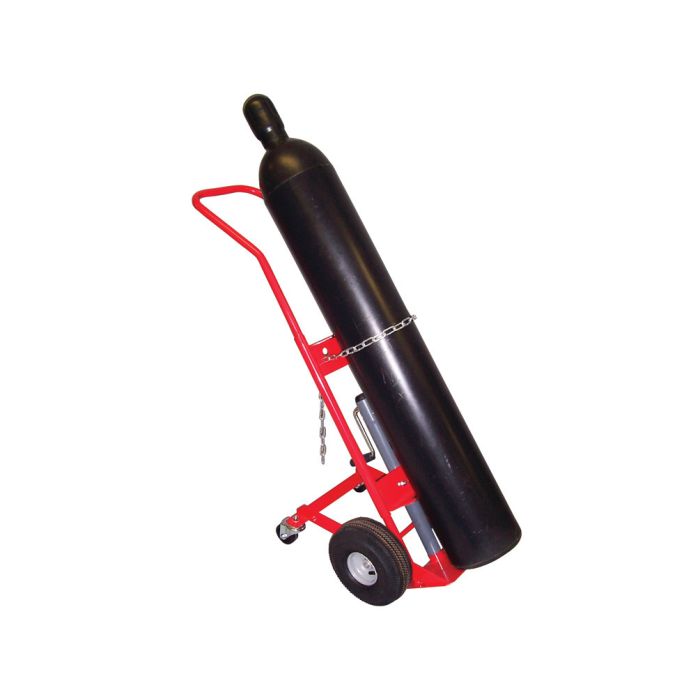

Justrite 35054 Lift-and-Load Single Cylinder Hand Truck
- Built-in clamping system with welded loop chain secures the cylinder for lifting and transport.
- Accepts cylinder sizes from 4- to 12-in (102- to 305-mm) diameter wide
Justrite 35054 Lift-and-Load Single Cylinder Hand Truck
Designed to lift, transport, and install gas cylinders on welding carts, platforms, pallets and in cabinets or other elevated surfaces. The manual lift system has a jack with an 11-inch (279-mm) extension geared to make lifting easy with approximately 10 turns of the crank per vertical inch.
Includes pneumatic 10.5-in (267-mm) main wheels and wide-set, dual 3-in (5-mm) rear swivel casters for increased stability and maneuverability. Fully welded construction, protected with durable, corrosion resistant, red powder-coat finish.
Features:
- Built-in clamping system with welded loop chain secures the cylinder for lifting and transport.
- Accepts cylinder sizes from 4- to 12-in (102- to 305-mm) diameter wide
Specs:
- Model No.: 35054
- Cylinder Capacity: 1
- Minimum Cylinder Diam (in): 4
- Cylinder Capacity with Max Cylinder Dia: (1) 12 inch
- Rear Casters: Yes
- Rear Casters (inch): 3
- Rear Casters (mm): 76
- Main Wheel Type: Pneumatic
- Main Wheel Size (inch): 10.5
- Main Wheel Size (mm): 267
- Weight Capacity (lb): 1000
- Weight Capacity (kg): 454
- Strap Style: Clampable Chain
- Straps Per Cylinder: 1
- Material Specifications: Steel
- Complies with NFPA 1 Fire-Code: Yes
- NFPA 55: Yes
- OSHA Compliance: Yes
- CGA: Yes
- Net Weight, lbs: 69
- Net Weight, kg: 31
- Net Dimensions (W x D x H): 22 x 20 x 56" / 559 x 508 x 1422 mm
* Note: Tanks not Included
Weight(LBS) | 90.000000 |
---|---|
Cylinders Held | 1 |
Divider Between Tanks | No |
Has Rear Casters | Yes |
Has Lifting Eye | No |
Width | 22" |
Depth | 20" |
Height | 56" |
