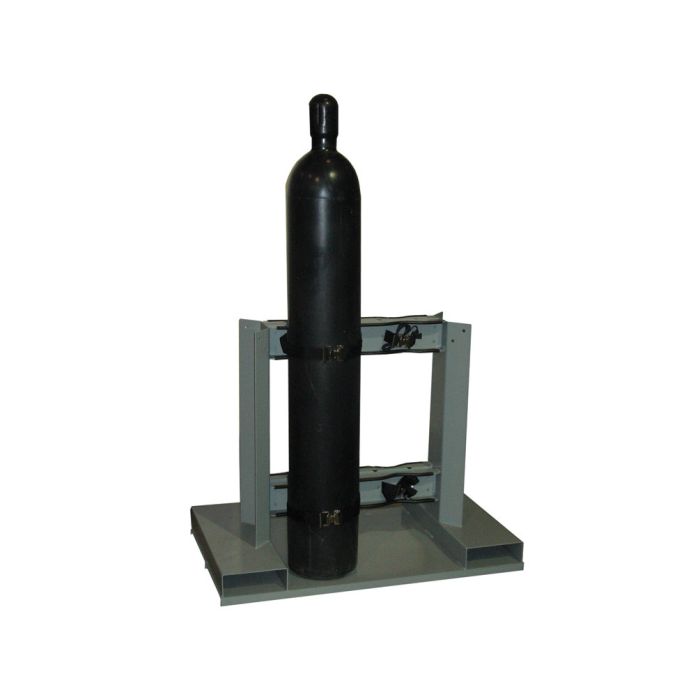

Justrite 35230 Gas Cylinder Forklift Pallet - 4 Cylinder Capacity - Individually Secured - Low Profile - Back-to-Back Loaded

Justrite 35230 Gas Cylinder Forklift Pallet - 4 Cylinder Capacity - Individually Secured - Low Profile - Back-to-Back Loaded

Transport multiple gas cylinders securely with a forklift using these pallets. Fully welded construction from 11-gauge (3-mm) hot-rolled steel, powder-coated to ensure longevity and chemical resistance. Heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against integral bracket. Back-to-back cylinder storage offers maximum space utilization. For an improved level of safety for any installation, all brackets include openings to retrofit secondary support chains, one set for each cylinder strap location.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

• Fully enclosed 7.75-in wide (197-mm) forklift channels with two way access
• Low profile design employs a lower deck—makes cylinder loading and unloading easier
• Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip
• Accepts cylinders from 4- to 12-in (102- to 305-mm) in diameter

Specs:

• Model No.: 35230
• Cylinder Capacity: 4
• Minimum Cylinder Diam (in): 4
• Cylinder Capacity with Max Cylinder Dia: (4) 12 inch
• Mount Type: Forklift
• Weight Capacity (lb): 1200
• Weight Capacity (kg): 544
• Strap Style: Poly Cinch Strap with Steel Buckle
• Straps Per Cylinder: 2
• Material Specifications: Steel
• Complies with NFPA 1 Fire-Code: Yes
• NFPA 55: Yes
• OSHA Compliance: Yes
• CGA: Yes
• Net Weight, lbs: 130
• Net Weight, kg: 59
• Net Dimensions (W x D x H): 39 x 24 x 32 inches
• 991 x 610 x 813 mm

* Note: No Tanks Included
