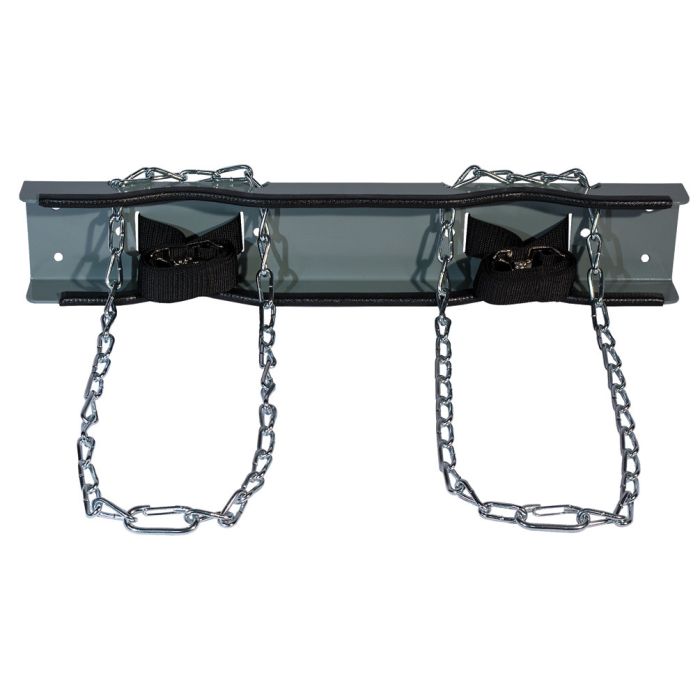

Justrite 35268 Gas Cylinder Support Bracket with Chain - 2 Cylinder Capacity - Wall Mount - Steel

Justrite 35268 Gas Cylinder Support Bracket with Chain - 2 Cylinder Capacity - Wall Mount - Steel

Cylinder support brackets provide a quick and easy solution for storing gas cylinders when space is at premium. Constructed from heavy gauge, powder-coated steel to ensure long service life and chemical resistance. Heavy-duty polypropylene support straps, 1.5- x 54-in (38-mm x 1372-mm) and rated at 1138-lb (516-kg), feature steel cinch buckle and hold individual cylinders securely against bracket. Welded and plated, heavy-duty size 2/0 steel chains with twist link allows links to lay flat against the cylinders, enabling a tighter fit and preventing damage to required labeling.

Helps comply with OSHA, NFP1, NFPA 55, and CGA.

Features:

• Brackets accept cylinder sizes ranging from 4- to 12-in (102- to 305-mm)
• Exclusive bumper guard edging with steel reinforced vinyl protects your cylinders from damage while providing extra grip
• Includes secondary support chain for an improved level of safety on any installation
• Designed for wall mounting applications

Specs:

• Model No.: 35268
• Cylinder Capacity: 2
• Minimum Cylinder Diam (in): 4
• Cylinder Capacity with Max Cylinder Dia: (2) 12 inch
• Mount Type: Wall
• Mount Holes: 4
• Mount Hole Size (inch): 0.406
• Strap Style: Poly Cinch Strap with Steel Buckle and Chain
• Straps Per Cylinder: 1
• Material Specifications: Steel
• Complies with NFPA 1 Fire-Code: Yes
• NFPA 55: Yes
• OSHA Compliance: Yes
• CGA: Yes
• Net Weight, lbs: 9
• Net Weight, kg: 4
• Net Dimensions (W x D x H): 23.75 x 2.25 x 4.25 inches
• : 603 x 57 x 108 mm

* Note: No Tanks Included
