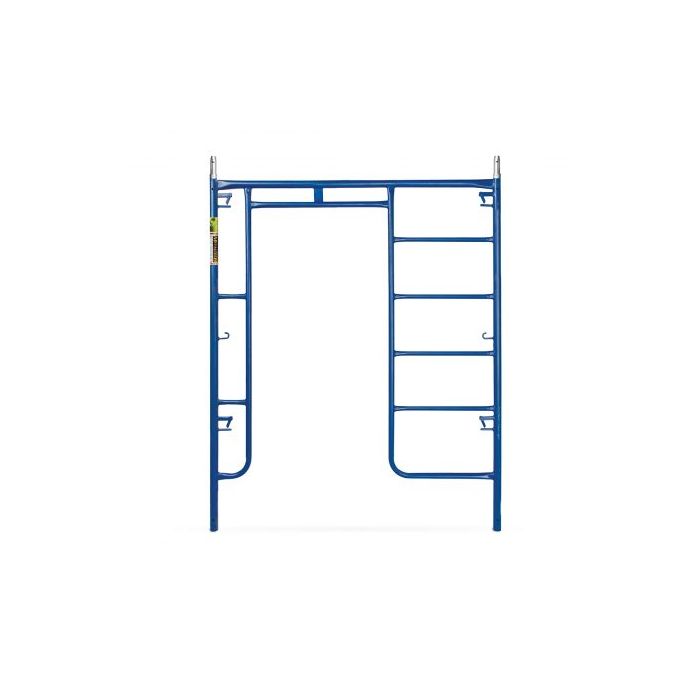

Metaltech Ladder arch frame 76" X 60"
Metaltech Ladder arch frame 76" X 60". The ladder arch frame is designed to provide a strong scaffold frame structure. Capacity: 4075 lb (1848.39 kg) | Weight: 52.8 LB | Dimensions: 76" X 60" | Finish: POWDER COATED. Model M-MA7660L. UPC 778300806461. View More
In stock
Product Code
M-MA7660L
$113.19
The Metaltech Ladder arch frame 76" X 60" (Model M-MA7660L) is engineered for jobsite reliability. The ladder arch frame is designed to provide a strong scaffold frame structure.
Key features
- Dimensions: 76” X 60”
- Capacity: 4075 lb (1848.39 kg)
- Lock spacing: 48 IN.
- Weight: 52.8 LB
- Finish: POWDER COATED
- Standards: ANSI, CSA AND OSHA
Specifications
| Dimensions | 76" X 60" |
|---|---|
| Capacity | 4075 lb (1848.39 kg) |
| Lock spacing | 48 IN. |
| Weight | 52.8 LB |
| Interior tubes | OUTSIDE DIAMETER 1.25 IN. - 16 GAUGE |
| Perimeter tubes | OUTSIDE DIAMETER 1.69 IN. - 13 GAUGE |
| Finish | POWDER COATED |
| Coupling pin | SPRING-LOCK |
| Frame lock | GRAVITY-LOCK |
| Standards | ANSI, CSA AND OSHA |
Model: M-MA7660L · UPC: 778300806461
| Weight(LBS) | 52.800000 |
|---|---|
| Request Quote | No |
