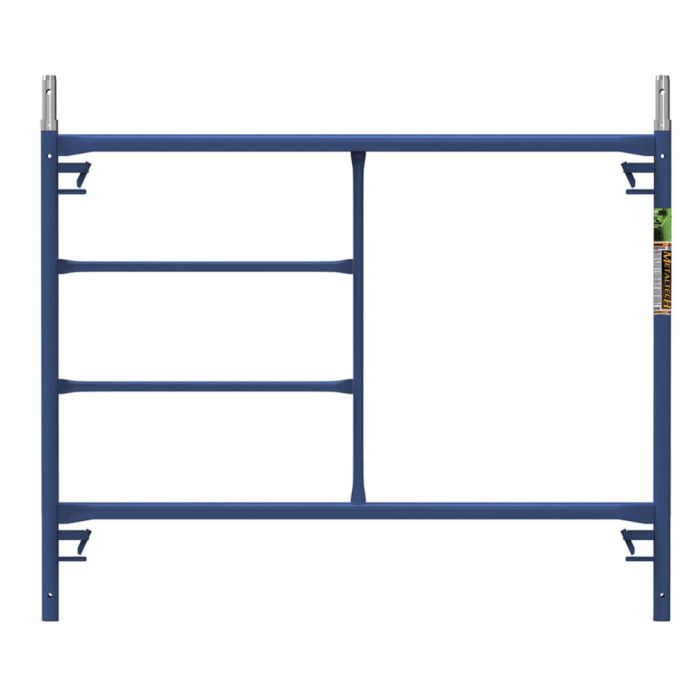

Metaltech Standard frame 48" X 60"
Metaltech Standard frame 48" X 60". *The stated capacity is based on the buckling of the frame's vertical posts. Capacity: 6736 lb (3055.40 kg) | Weight: 36.8 LB | Dimensions: 48" X 60" | Finish: POWDER COATED. Model M-MF4860. UPC 778300800452. View More
In stock
Product Code
M-MF4860
$84.85
The Metaltech Standard frame 48" X 60" (Model M-MF4860) is engineered for jobsite reliability. *The stated capacity is based on the buckling of the frame's vertical posts. The maximum load must always comply with the most limiting component of the system.
Key features
- Dimensions: 48" X 60"
- Capacity: 6736 lb (3055.40 kg)
- Lock spacing: 36 IN.
- Weight: 36.8 LB
- Interior tubes: OUTSIDE DIAMETER 1 IN. - 16 GAUGE
- Perimeter tubes: OUTSIDE DIAMETER 1.69 IN. - 13 GAUGE
- Finish: POWDER COATED
- Coupling pin: SPRING-LOCK
- Frame lock: GRAVITY-LOCK
- Standards: ANSI, CSA AND OSHA
Specifications
| Dimensions | 48" X 60" |
|---|---|
| Capacity | 6736 lb (3055.40 kg) |
| Lock spacing | 36 IN. |
| Weight | 36.8 LB |
| Interior tubes | OUTSIDE DIAMETER 1 IN. - 16 GAUGE |
| Perimeter tubes | OUTSIDE DIAMETER 1.69 IN. - 13 GAUGE |
| Finish | POWDER COATED |
| Coupling pin | SPRING-LOCK |
| Frame lock | GRAVITY-LOCK |
| Standards | ANSI, CSA AND OSHA |
Model: M-MF4860 · UPC: 778300800452
