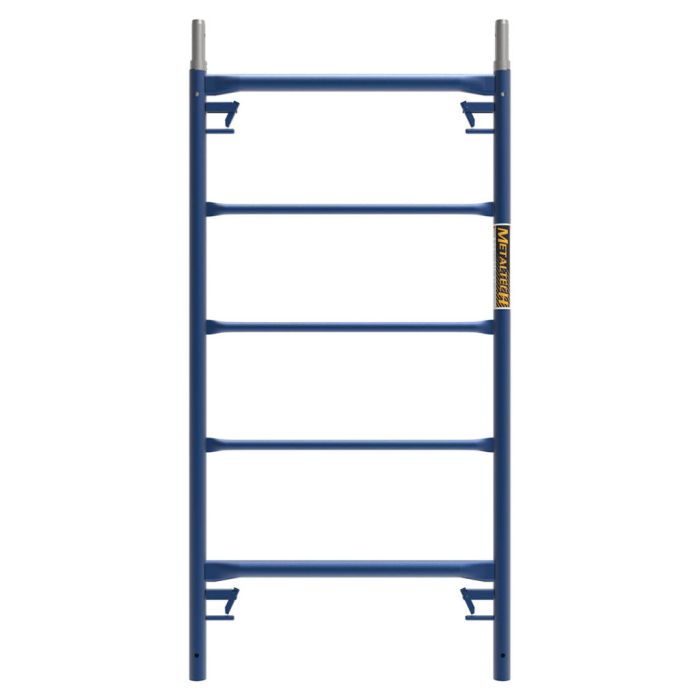

Metaltech Standard frame 60" X 30"
Metaltech Standard frame 60" X 30". *The stated capacity is based on the buckling of the frame's vertical posts. Capacity: 5126 lb (2325.11 kg) | Weight: 30 LB | Dimensions: 60" X 30" | Finish: POWDER COATED. Model M-MF6030. UPC 778300800537. View More
In stock
Product Code
M-MF6030
$73.61
The Metaltech Standard frame 60" X 30" (Model M-MF6030) is engineered for jobsite reliability. *The stated capacity is based on the buckling of the frame's vertical posts. The maximum load must always comply with the most limiting component of the system.
Key features
- Dimensions: 60" X 30"
- Capacity: 5126 lb (2325.11 kg)
- Lock spacing: 48 IN.
- Weight: 30 LB
- Interior tubes: OUTSIDE DIAMETER 1 IN. - 16 GAUGE
- Perimeter tubes: OUTSIDE DIAMETER 1.69 IN. - 13 GAUGE
- Finish: POWDER COATED
- Coupling pin: SPRING-LOCK
- Frame lock: GRAVITY-LOCK
- Standards: ANSI, CSA AND OSHA
Specifications
| Dimensions | 60" X 30" |
|---|---|
| Capacity | 5126 lb (2325.11 kg) |
| Lock spacing | 48 IN. |
| Weight | 30 LB |
| Interior tubes | OUTSIDE DIAMETER 1 IN. - 16 GAUGE |
| Perimeter tubes | OUTSIDE DIAMETER 1.69 IN. - 13 GAUGE |
| Finish | POWDER COATED |
| Coupling pin | SPRING-LOCK |
| Frame lock | GRAVITY-LOCK |
| Standards | ANSI, CSA AND OSHA |
Model: M-MF6030 · UPC: 778300800537
