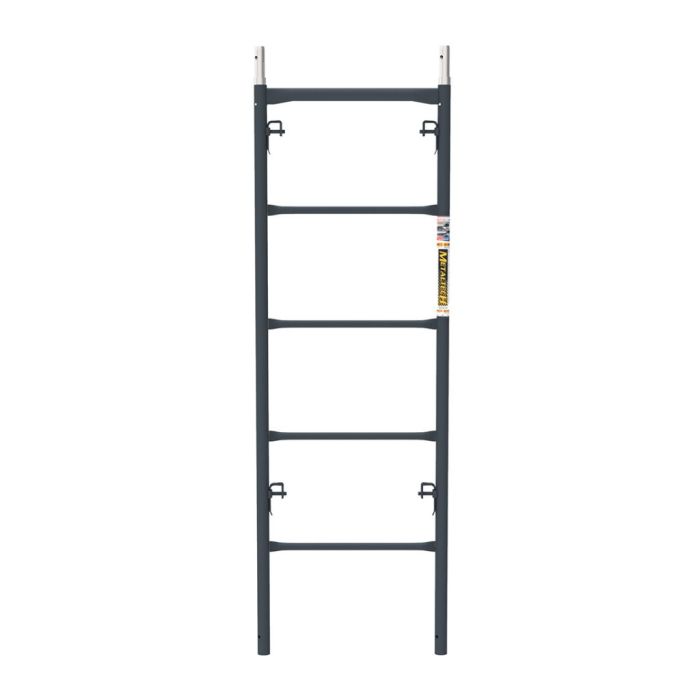

Metaltech Standard frame 76" X 24"
Metaltech Standard frame 76" X 24". The stated capacity is based on the buckling of the frame's vertical posts. Capacity: 3301 lb (1497.31 kg) | Weight: 29.2 LB | Dimensions: 76” X 24” | Finish: POWDER COATED. Model M-MF7624. UPC 778300001835. View More
In stock
Product Code
M-MF7624
$113.39
The Metaltech Standard frame 76" X 24" (Model M-MF7624) is engineered for jobsite reliability. The stated capacity is based on the buckling of the frame's vertical posts. The maximum load must always comply with the most limiting component of the system.
Key features
- Product only available in the USA.
- Dimensions: 76" X 24"
- Capacity: 3301 lb (1497.31 kg)
- Lock spacing: 48 IN.
- Weight: 29.2 LB
- Interior tubes: OUTSIDE DIAMETER 1 IN. - 16 GAUGE
- Perimeter tubes: OUTSIDE DIAMETER 1.69 IN. - 13 GAUGE
- Finish: POWDER COATED
- Coupling pin: SPRING-LOCK
- Frame lock: V-LOCK
- Standards: ANSI AND OSHA
Specifications
| Dimensions | 76” X 24” |
|---|---|
| Capacity | 3301 lb (1497.31 kg) |
| Lock spacing | 48 IN. |
| Weight | 29.2 LB |
| Interior tubes | OUTSIDE DIAMETER 1 IN. - 16 GAUGE |
| Perimeter tubes | OUTSIDE DIAMETER 1.69 IN. - 13 GAUGE |
| Finish | POWDER COATED |
| Coupling pin | SPRING-LOCK |
| Frame lock | V-LOCK |
| Standards | ANSI AND OSHA |
Model: M-MF7624 · UPC: 778300001835
