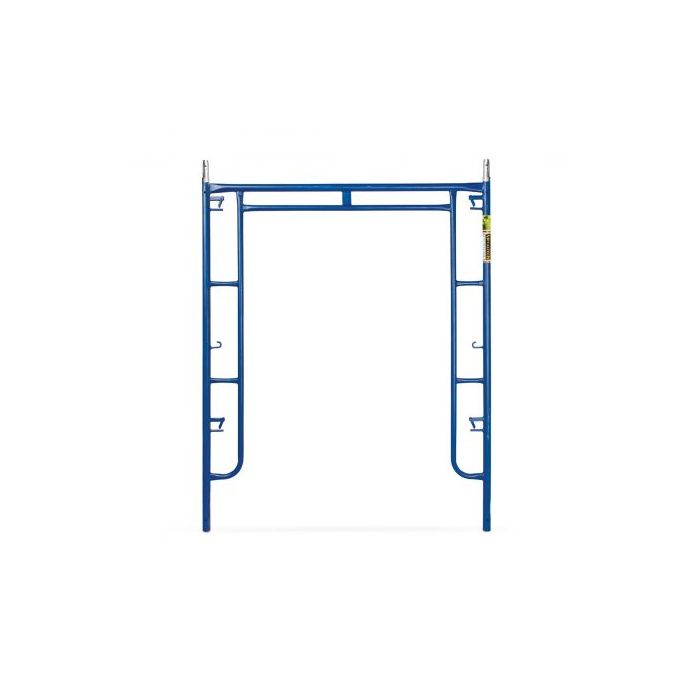

Metaltech Walk-thru arch frame 76" X 60"
Metaltech Walk-thru arch frame 76" X 60". The Walk-thru Arch Frame is a durable and reliable scaffolding option. Capacity: 4075 lb (1848.39 kg) | Weight: 46.8 LB | Dimensions: 76" X 60" | Finish: POWDER COATED. Model M-MA7660. UPC 778300806454. View More
In stock
Product Code
M-MA7660
$113.78
The Metaltech Walk-thru arch frame 76" X 60" (Model M-MA7660) is engineered for jobsite reliability. The Walk-thru Arch Frame is a durable and reliable scaffolding option.
Key features
- Dimensions: 76” X 60”
- Capacity: 4075 lb (1848.39 kg)
- Lock spacing: 48 IN.
- Weight: 46.8 LB
- Finish: POWDER COATED
- Standards: ANSI, CSA AND OSHA
Specifications
| Dimensions | 76" X 60" |
|---|---|
| Capacity | 4075 lb (1848.39 kg) |
| Lock spacing | 48 IN. |
| Weight | 46.8 LB |
| Interior tubes | OUTSIDE DIAMETER 1.25 IN. - 16 GAUGE |
| Perimeter tubes | OUTSIDE DIAMETER 1.69 IN. - 13 GAUGE |
| Finish | POWDER COATED |
| Coupling pin | SPRING-LOCK |
| Frame lock | GRAVITY-LOCK |
| Standards | ANSI, CSA AND OSHA |
Model: M-MA7660 · UPC: 778300806454
| Weight(LBS) | 46.800000 |
|---|---|
