Tri-Arc Supported Cantilever Rolling Ladders
A cantilever ladder provides access above an obstacle or hard to reach area by allowing the platform to cantilever beyond the back of the ladder View More
In stock
Product Code
Tri-Arc_Supported_Cantilever_Rolling_Ladders
Tri-Arc Supported Cantilever Rolling Ladders
| Model Number | Number of Steps | Step Width | Top Step Height | Top Step Depth | Tread Type |
|---|---|---|---|---|---|
| UCS500520246 | 5 | 24" | 50" | 20" | Perforated |
| UCS500620246 | 6 | 24" | 60" | 20" | Perforated |
| UCS500720246 | 7 | 24" | 70" | 20" | Perforated |
| UCS500820246 | 8 | 24" | 80" | 20" | Perforated |
| UCS500920246 | 9 | 24" | 90" | 20" | Perforated |
| UCS500520242 | 5 | 24" | 50" | 20" | Serrated |
| UCS500620242 | 6 | 24" | 60" | 20" | Serrated |
| UCS500720242 | 7 | 24" | 70" | 20" | Serrated |
| UCS500820242 | 8 | 24" | 80" | 20" | Serrated |
| UCS500920242 | 9 | 24" | 90" | 20" | Serrated |
| UCS500530246 | 5 | 24" | 50" | 30" | Perforated |
| UCS500630246 | 6 | 24" | 60" | 30" | Perforated |
| UCS500730246 | 7 | 24" | 70" | 30" | Perforated |
| UCS500830246 | 8 | 24" | 80" | 30" | Perforated |
| UCS500930246 | 9 | 24" | 90" | 30" | Perforated |
| UCS500530242 | 5 | 24" | 50" | 30" | Serrated |
| UCS500630242 | 6 | 24" | 60" | 30" | Serrated |
| UCS500730242 | 7 | 24" | 70" | 30" | Serrated |
| UCS500830242 | 8 | 24" | 80" | 30" | Serrated |
| UCS500930242 | 9 | 24" | 90" | 30" | Serrated |
| UCS500540246 | 5 | 24" | 50" | 40" | Perforated |
| UCS500640246 | 6 | 24" | 60" | 40" | Perforated |
| UCS500740246 | 7 | 24" | 70" | 40" | Perforated |
| UCS500840246 | 8 | 24" | 80" | 40" | Perforated |
| UCS500940246 | 9 | 24" | 90" | 40" | Perforated |
| UCS500540242 | 5 | 24" | 50" | 40" | Serrated |
| UCS500640242 | 6 | 24" | 60" | 40" | Serrated |
| UCS500740242 | 7 | 24" | 70" | 40" | Serrated |
| UCS500840242 | 8 | 24" | 80" | 40" | Serrated |
| UCS500940242 | 9 | 24" | 90" | 40" | Serrated |

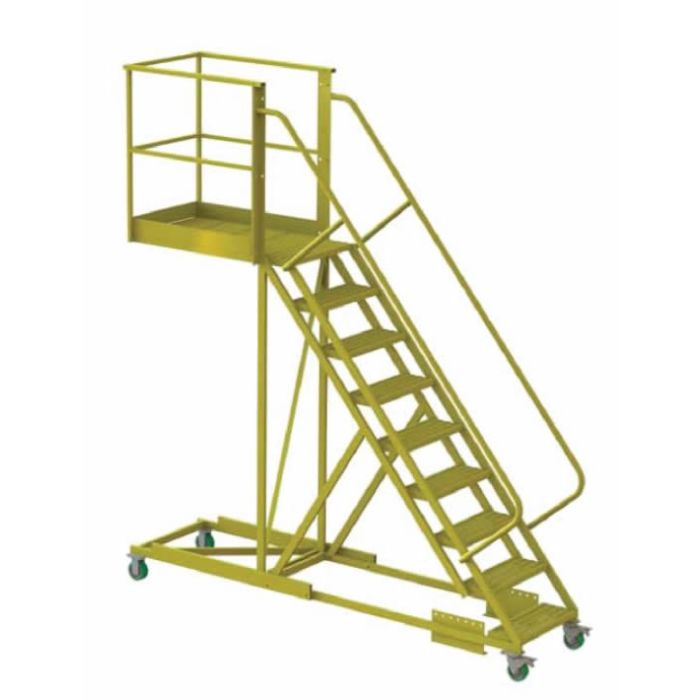

Tri-Arc Supported Cantilever Rolling Ladders
A cantilever ladder provides access above an obstacle or hard to reach area by allowing the platform to cantilever beyond the back of the ladder. Support leg rolls under obstructions like tanks, trucks, or machines. Supported Version allows cantilevered access without added counterweight.
Features:
- 300 lb. rated capacity
- 1"x 2" rectangular tube construction
- 24" wide steps and platform
- 50Ëš safety angle incline ladder
- 5"x 2" locking casters
- Powder coat yellow finish
- Meets OSHA 1910.29 & ANSI A14.7
- Clearance height is 2" less than platform height
| Weight(LBS) | 0.000000 |
|---|
