Coxreels PC Series 100' Electric Cord Spring Driven Reels

PC Series spring driven "Power Cord" reels are heavy duty, industrial grade power sources. They replace tangled extension cords and self-retract to increase safety, productivity and efficiency. Modeled after the P and SH Series, the PC Series are designed for long-lasting, trouble-free performance even under the most demanding conditions. View More

In stock

Product Code

Cox_PC_Series_100'_Electric_Cord_Spring_Driven_Reels

Be the first to review this product

Scroll down to the table below or click the Choose Options button to select a model to add to your cart

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Coxreels PC Series 100' Electric Cord Spring Driven Reels

Grouped product items
Model Number	Cord Included	Cord Gauge	Voltage	Amps	Cord Accessory	Price	Qty
PC24-0012-A	Yes	12	115	20	Single Industrial Receptacle	$992.04	+ -
PC24-0016-A	Yes	16	115	13	Single Industrial Receptacle	$769.44	+ -
PC24-0012-B	Yes	12	115	20	Quad Industrial Receptacle	$1,133.16	+ -
PC24-0016-D	Yes	16	115	13	Fluorescent Angle Light	$827.40	+ -
PC24-0016-E	Yes	16	115	13	Incandescent Cage Light	$691.32	+ -
PC24-0012-F	Yes	12	115	20	Duplex GFCI Industrial Receptacle	$1,154.16	+ -
PC24-0016-F	Yes	16	115	13	Duplex GFCI Industrial Receptacle	$959.28	+ -
PC24-0012-X	Yes	12	115	20	No Accessory	$915.60	+ -
PC24-0016-X	Yes	16	115	13	No Accessory	$755.16	+ -
PC24L-0012	No	12	115	25	N/A	$693.00	+ -
PC24L-0016	No	16	115	25	N/A	$650.16	+ -

Description

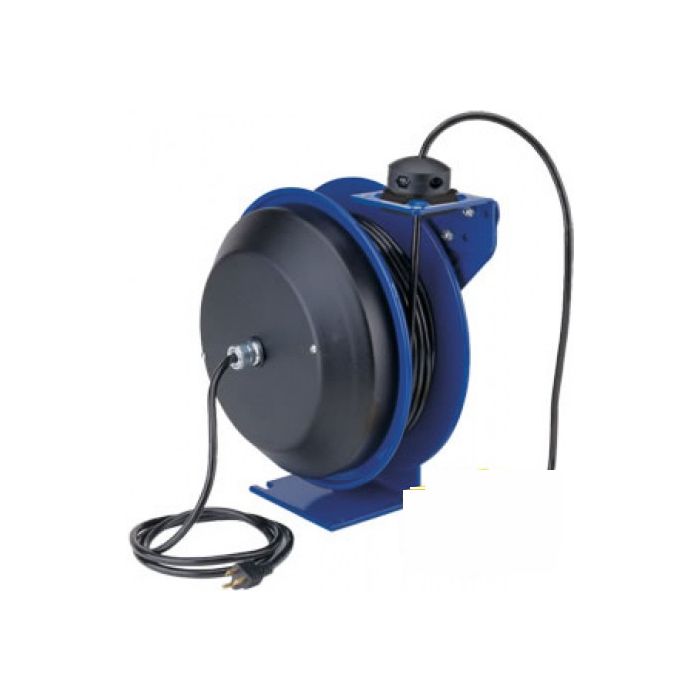

Main Image Represents the Overall Industrial Extension Cord Reel. See Secondary Image for End Accessory.

PC Series spring driven "Power Cord" reels are heavy duty, industrial grade power sources. These heavy-duty electric cord reels replace tangled extension cords and self-retract to increase safety, productivity and efficiency. Modeled after the P and SH Series, the PC Series are designed for long-lasting, trouble-free performance even under the most demanding conditions.

Features:

External heavy gauge CPC™ powder coated steel components cover for simple slip ring routine maintenance
Electrical current runs through a 25AMP / 600V rated slip ring (35AMPon select models)
Include 5' pigtail & grounding plug (except on less cord models)
Selection of electrical accessories
Single pedestal cord reel with space saving design facilitates workplace organization
Guide arm adjusts to wall, floor & overhead positions
Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
Coxreels' exclusive Super Hub™ dual axle support system on models with size index #3 & #4
1" solid steel axle & lubricated precision bearings for smooth rotation
Enclosed factory tuned & matched cartridge-style spring motor
Non corrosive stainless steel spring, pawl & zinc plated ratchet
Multi-position lock ratchet mechanism secures cord at desired length
Professional grade heavy duty steel construction
Durable proprietary CPC™ powder coat finish
CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
Industry leading 2 year manufacturer's limited warranty
Made in the U.S.A. – This Industrial Extension Cord Reel is Sold & Supported Worldwide

SJO - Hard service cord, thermoset insulated conductors and oil resistant jacket. (thermoset)

WARNING: This 100' electric cord reel can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
