Coxreels PC10 Series Electric Cord Spring Driven Reels

PC10 Series Power-Cord Series is a unique compact addition to our original line of power cord and light reels. This ground-breaking design sets a new bar as the ideal cord management solution capable of fulfilling any commercial or industrial application where space is limited. Modeled after the LG "Little Giant" Series, this Series is equipped with a continuous radius grommet style power cord guide and a unique C-PEP™ Composite hub featuring excellent chemical resistance and additional strength at cold temperatures. View More

In stock

Product Code

Cox_PC10_Series_Electric_Cord_Spring_Driven_Reels

Be the first to review this product

Scroll down to the table below or click the Choose Options button to select a model to add to your cart

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Coxreels PC10 Series Electric Cord Spring Driven Reels

Grouped product items
Model Number	Cord Included	Cord Gauge	Voltage	Amps	Cord Accessory	Price	Qty
PC10-3012-F	Yes	12	115	20	Duplex GFCI Industrial Receptacle	$524.16	+ -
PC10-3016-E	Yes	16	115	13	Incandescent Cage Light	$395.64	+ -
PC10-3012-B	Yes	12	115	20	Quad Industrial Receptacle	$561.12	+ -
PC10L-3016	No	16	300	13	N/A	$289.80	+ -
PC10-3016-A	Yes	16	115	13	Single Industrial Receptacle	$411.60	+ -
PC10-3016-X	Yes	16	300	13	No Accessory	$388.08	+ -
PC10-3016-F	Yes	16	115	13	Duplex GFCI Industrial Receptacle	$478.80	+ -
PC10-3016-D	Yes	16	115	13	Fluorescent Angle Light	$429.24	+ -
PC10L-3012	No	12	300	20	N/A	$297.36	+ -
PC10-3012-A	Yes	12	115	20	Single Industrial Receptacle	$466.20	+ -
PC10-3012-X	Yes	12	300	20	No Accessory	$425.88	+ -

Description

The Following Models are part of the Quick Ship / Ship Ready Program and will Ship within 3 Business Days:

PC13-5012-A
PC13-5012-B

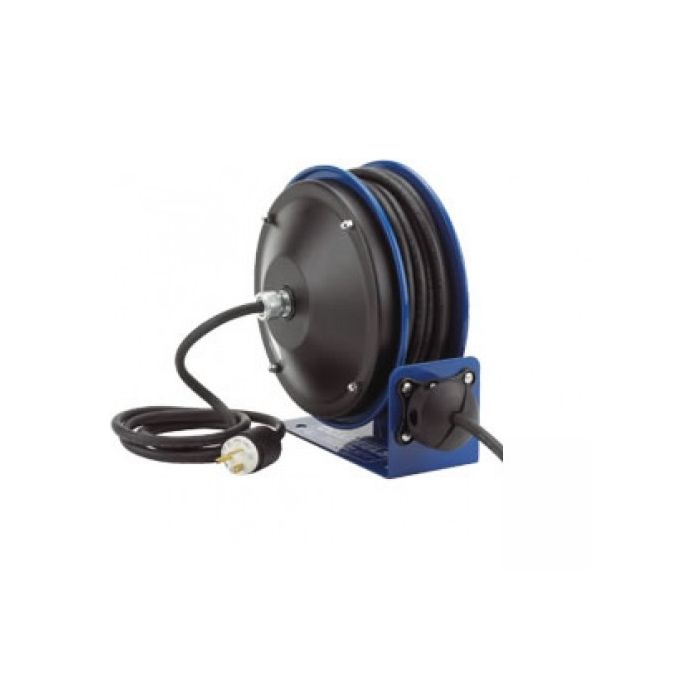

Main Image Represents the Overall Reel. See Secondary Image for End Accessory.

Features:

External heavy gauge CPC™ powder coated steel components cover for simple slip ring routine maintenance
Electrical current runs through a 25AMP / 600V rated slip ring
Include 5' lead cable & grounding plug (except on less cord models)
Selection of electrical accessories
Compact & lightweight spring driven cord reel save space & facilitate workplace organization
CoxComposite™ grommet with continuous radius design that does not pinch or catch the cord during operation
Solid one piece, 12GA steel base & support post for maximum stability
1/2" solid steel axle & lubricated precision bearings for smooth rotation
Enclosed factory tuned & matched cartridge-style spring motor
Non-corrosive CoxComposite™ ratchet hub with self lubricating bronze bearings secures cord at desired length
Professional grade heavy duty steel construction
Durable proprietary CPC™ powder coat finish
CNC robotically spun and ribbed discs with rolled edges provide strength, safety, and durability
Industry leading 2 year manufacturer's limited warranty
Made in the U.S.A. – Sold & Supported Worldwide

SJO - Hard service cord, thermoset insulated conductors and oil resistant jacket. (thermoset)

WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
