| Model Number | Power | Capacity | Fork OD | Fork Length | Base Dimensions |
|---|---|---|---|---|---|
| TMS-20-AC | AC | 2,000 lbs | 8-1/2" to 36-1/2" | 35" | 65-11/16" L x 57-1/4" W x 29-5/16" H |
| TMS-20-AIR | AIR | 2,000 lbs | 8-1/2" to 36-1/2" | 35" | 65-11/16" L x 57-1/4" W x 29-5/16" H |
| TMS-20-DC | DC | 2,000 lbs | 8-1/2" to 36-1/2" | 35" | 65-11/16" L x 57-1/4" W x 29-5/16" H |
| TMS-20-DC-PTDS | DC with Power Traction Drive System | 2,000 lbs | 8-1/2" to 36-1/2" | 35" | 65-11/16" L x 57-1/4" W x 29-5/16" H |
| TMS-40-AC | AC | 4,000 lbs | 8-1/2" to 36-1/2" | 35" | 65-11/16" L x 57-1/4" W x 29-5/16" H |
| TMS-40-AIR | AIR | 4,000 lbs | 8-1/2" to 36-1/2" | 35" | 65-11/16" L x 57-1/4" W x 29-5/16" H |
| TMS-40-DC | DC | 4,000 lbs | 8-1/2" to 36-1/2" | 35" | 65-11/16" L x 57-1/4" W x 29-5/16" H |
| TMS-40-DC-PTDS | DC with Power Traction Drive System | 4,000 lbs | 8-1/2" to 36-1/2" | 35" | 65-11/16" L x 57-1/4" W x 29-5/16" H |
| TMS-60-AC | AC | 6,000 lbs | 8-1/2" to 36-1/2" | 35" | 65-11/16" L x 57-1/4" W x 29-5/16" H |
| TMS-60-AIR | AIR | 6,000 lbs | 8-1/2" to 36-1/2" | 35" | 65-11/16" L x 57-1/4" W x 29-5/16" H |
| TMS-60-DC | DC | 6,000 lbs | 8-1/2" to 36-1/2" | 35" | 65-11/16" L x 57-1/4" W x 29-5/16" H |
| TMS-60-DC-PTDS | DC with Power Traction Drive System | 6,000 lbs | 8-1/2" to 36-1/2" | 35" | 65-11/16" L x 57-1/4" W x 29-5/16" H |

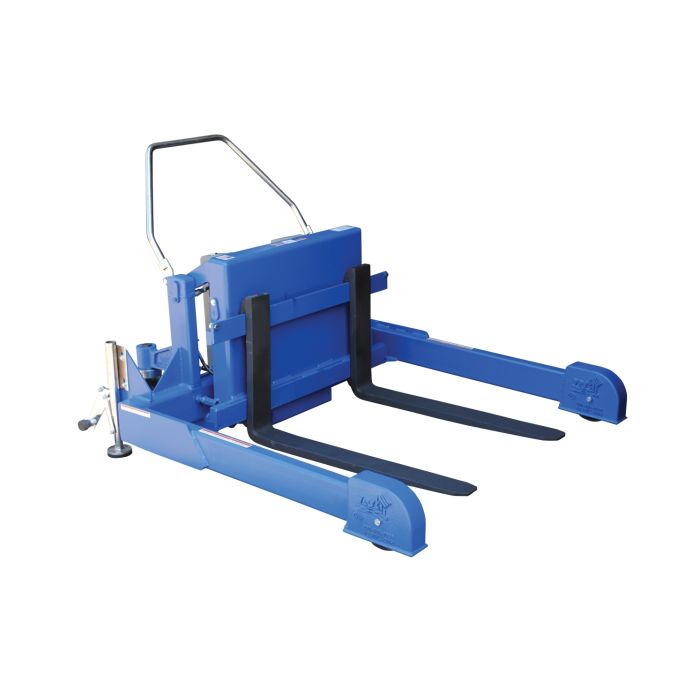

The Tilt Master Straddle lifts and positions filled tote boxes or baskets without the need of a fork truck or lift table using the newly designed heavy-duty tilt master. The tilter will function as transporters by moving completed products from work station to work station without waiting for a fork truck. It features a folding ergonomic handle for quick and easy maneuverability. This Lift has a thin profile to allow the user to get as close to the load as possible. The unit has a standard floor lock and rolls easily on the phenolic steering wheels. Lift is designed to be used with virtually any kind of container or pallet and is powered by an AC electric motor that includes an on-board battery charger standard. The unit comes standard with a push-button hand control on a coil cord.
Features:
- Will function as a transporter by moving completed products from work station to work station without waiting for a fork truck
- Two rigid and two swivel casters provide smooth and efficient mobility
- 90° tilt angle allows for better ergonomic access
- Ergonomic push handle folds down when not needed for better access
Specs:
- Fork Adjustment Minimum: 1/2"
- Fork Adjustment Maximum (ID): 28-1/2"
- Operator Reach: 13-1/2"
- Fork Width: 4"
- Fork Length: 35"
- Rotated Height: 37"
- Lowered Height: 3"
- Maximum Tilt Degree: 90
- Power Options : 115V / 1 PH | AIR/OIL | 12V DC
- Wheel Diameter: 8"
- Wheel Width: 3"
- Wheel Type: Phenolic
- Folding Handle Length: 22"
