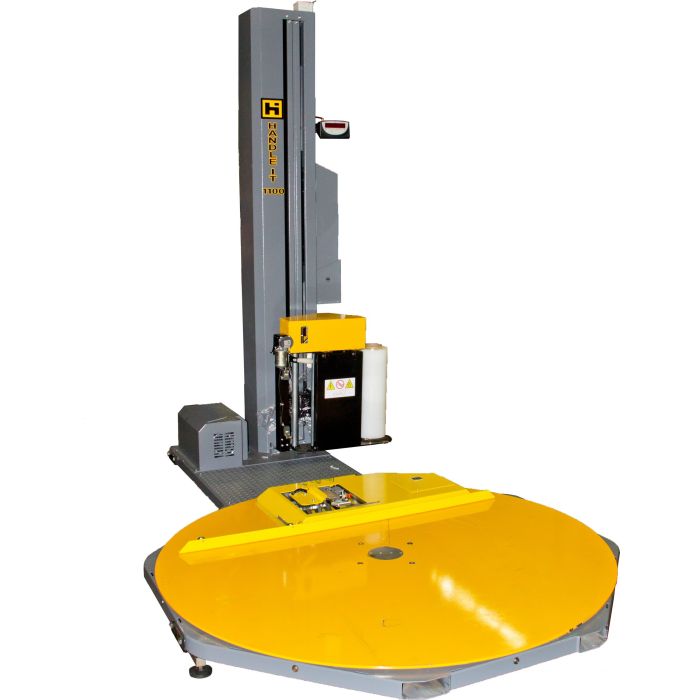

Handle-It SWM-SA-1100AA-C 1100AA-C Automatic Stretch Wrap Machine
The Handle-It automatic stretch wrapper Model 1100AA-C offers top-of-the-line functions and features at a great price. It enables you to perform the entire wrapping cycle without getting off of your forklift.
Features:
- Photocell for pallet height detection.
- Remote control for cycle start, no need to get off the forklift the machine automatically attaches, seals, and cuts the film.
- Easily adjustable parameters such as bottom wraps, top wraps, carriage ascent & descent speed, film tension, & starting wrap height.
- USB port to upload software and download settings, reports, and statistics.
- 6 working cycles: ascent/descent, topsheet, only ascent, only descent, layers, and stack.
- Storage of 32 end user programs.
- On-board diagnostics.
- Up to 250% film pre-stretch with electronic power pre-stretch motor.
- 3 year warranty​.
Performance:
- 300 maximum average loads per day.
- Production rate of around 2 minutes per pallet.
- 86″ maximum load wrap height (with room for overwrap) -118″ extended height available.
- 4400lb maximum load weight capacity.
- 250% power pre-stretch film carriage for improved efficiency.
- Remote controlled auto film attach, hot weld seal, and film auto cut. -Operator never leaves the forklift.
Benefits:
Specs:
- Turntable speed 3-12 RPM.
- 59″ Turntable size.
- 3/4 HP TEFC Turntable Drive Motor.
- 1/2 HP TEFC Pre-Stretch Motor.
- 110v standard plug.
- Machine size 113″L x 70″ W x 97″ H.
- Air supply requirements: 8 gallon minimum with 90 psi.
Weight(LBS) | 1400.000000 |
---|---|
Part Description | 86" Wrap Height |
Size | 113" x 70" x 97" |
Height | 97" |
Capacity | 4,400 lbs |
