Werner 8' Confined Space Tripod System
Werner 8' Confined Space Tripod System
| Model Number | Part Description |
|---|---|
| T700000X | for Fall Arrest, Rescue, and Material Hoisting with Re-Direct Capabilities |
| T700000XR | for Fall Arrest and Rescue |
| T70000XRW | for Fall Arrest and Rescue with Re-Direct Capabilities |

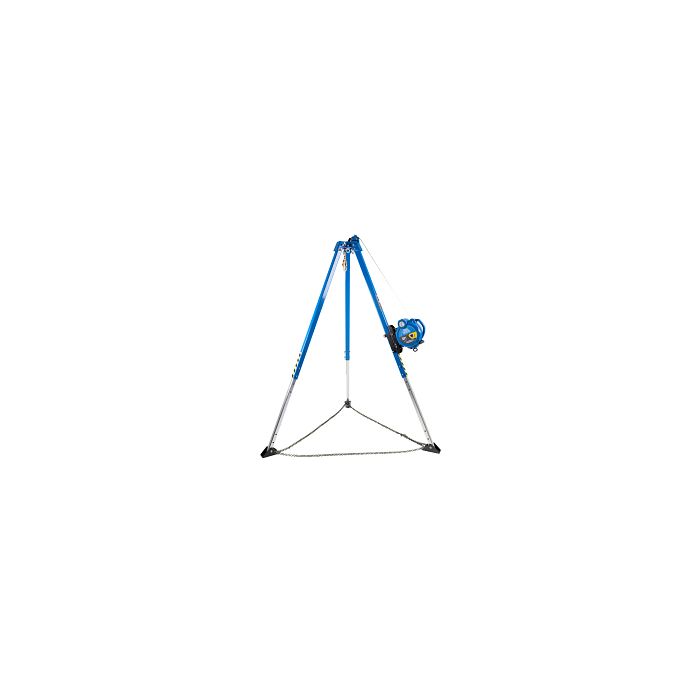

The Werner Confined Space Kit Tripod extends from 58 inches to 97 inches in height for installation over openings with a maximum diameter of 42 inches when fully extended and meets the requirements of ANSI Z359.18-2017 Type A. The 3-Way SRL-R is designed for a single user with a capacity up to 310 pounds total working weight and has an aluminum housing with a lifting ratio of 6.5:1. When tested to the requirements of the ANSI Z359.14-2021 standard for Class 1 for SRLs, the 3-Way SRL-R has an average arrest force of 1,350 pounds and a maximum arrest distance of 24 inches. The hoist (included with some models) is capable of raising and lowering loads of up to 450 pounds. The Material Hoist has 60 feet of 3⁄16-inch diameter galvanized steel cable.
See Images or Documents for Included Components of Each Model
Features(dependent upon model selected):
- Confined Space Kit with Tripod, 60-foot 3-Way SRL-R, Bracket, Pulley, Carabiner, Hoist Bracket, and 60-foot Hoist
- Confined Space Kit includes T100108 8ft Aluminum Tripod, the T410060 60-foot 3-Way SRL-R, (2) T100008B Mounting Brackets, T510080B Hoist Bracket, T510045 60-foot Material Hoist and T200007 Pulley and carabiner
- High strength, lightweight Aluminum Tripod extends from 58-inches to 97-inches in height
- Tripod meets ANSI Z359.18-2017 Type A and OSHA regulations
- The 60-foot 3-Way SRL-R has maximum arrest distance of 24-inches
- 3-Way SRL-R meets ANSI z359.14-2021 Class 1 SRL-R and OSHA Standards
- Material Hoist is capable of raising and lowering loads of up to 450 lb
- Pulley is for use with up to a 1/2-inch diameter steel cable and has a 8,100 lb tensile breaking strength
| Weight(LBS) | 0.000000 |
|---|
