Werner Tripod and Hoist Systems

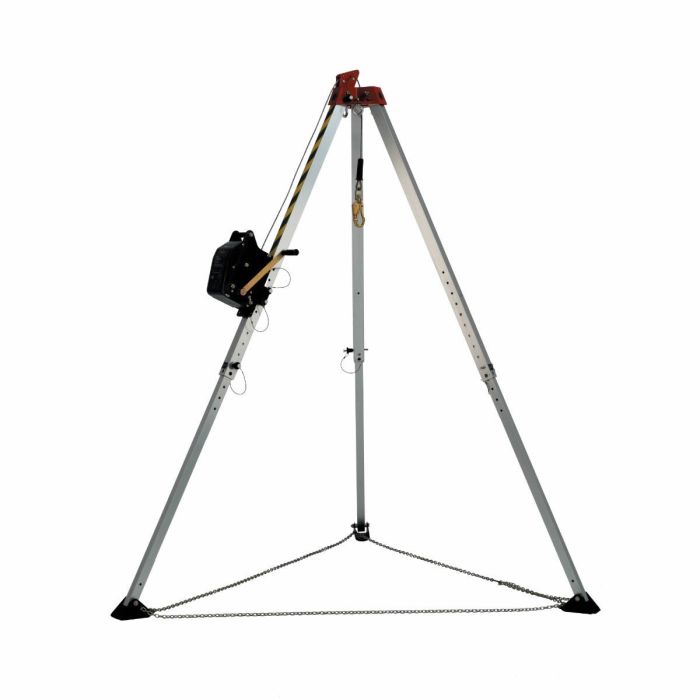

The Werner T100009 high strength aluminum Tripod allows for lifting and lowering of personnel and materials into confined spaces from above. It's lightweight design allows for quick installation and tear down. The Tripod extends from 70 - 84 inches in height for installation over openings with a maximum diameter of 80 inches when fully extended. The head of the Tripod includes two 5/8 inch forged steel eye bolts. The eye bolts are for ANSI Z359.1-07 and ANSI Z359.4-07 direct connection of fall arrest and rescue subsystems. The aluminum feet on the Tripod have rubber skid pads and a safety chain to help prevent the legs from spreading apart. Includes carry bag.
The Werner aluminum alloy T200001 Tripod Pulley is used to redirect the steel cable of the 3-Way SRL-R to above the entry point. The Tripod Pulley is designed for use with up to a 7/16 inch diameter steel cable and has an 8,100 pound tensile breaking strength.
The Werner T210060 60' and T210100 100' 3-Way Self Retracting Lifelines with Rescue Capability (SRL-R) mount to the leg of the tripod creating a quick and simple setup to allow personnel to vertically enter into a confined space. The 3-Way SRL is designed for a single user with a capacity up to 310 pounds total working weight and has a polymer housing, with 3/16 inch diameter galvanized steel cable. When tested to the requirements of the ANSI Z359.14 standard for Class B for SRLs, the 3-Way SRL-R has an average arrest force of less then 900 pounds and a maximum arrest distance of 54 inches.
The steel T210060B Mounting Bracket attaches the 60' 3-Way Self Retracting Lifeline with Rescue Capability (SRL-R) to any leg of the tripod.
The steel T210100B Mounting Bracket attaches the 100' 3-Way Self Retracting Lifeline with Rescue Capability (SRL-R) to any leg of the tripod.
The Werner T510045 Material Hoist is capable of raising and lowering loads of up to 450 pounds. The Material Hoist has 60 feet of 3/16 inch diameter galvanized steel cable. The Material Hoist requires the T510000B Mounting Bracket for mounting onto the Tripod.
The steel T510000B Mounting Bracket attaches the 60' Material Hoist to any leg of the tripod.
