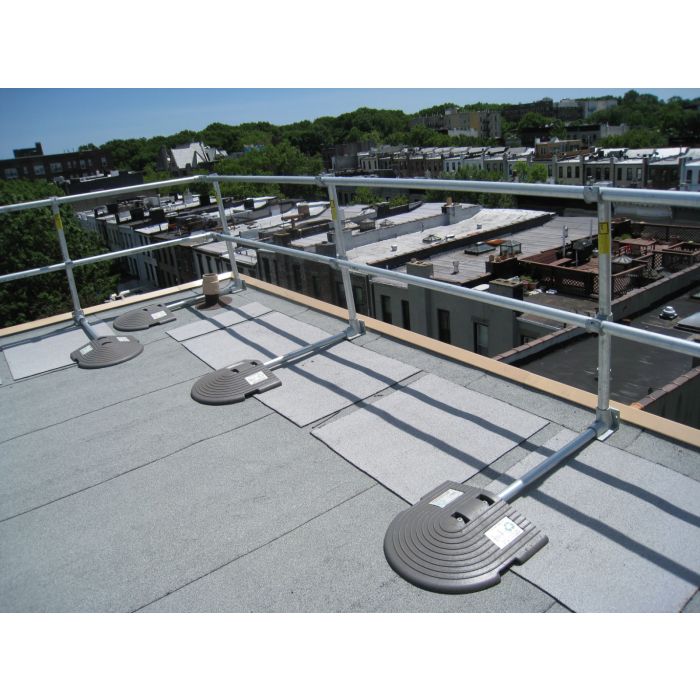

Kee Guard Galvanized Steel Roof Railing System

Fall Protection that Does Not Penetrate the Roof Membrane

Why use a railing system for fall protection on a low slope roof?

• A guardrail system removes the risk of workers reaching a position from which they could enter into a free fall situation.
• There is no training involved - everybody knows how to use railings.
• It is the safest way to provide fall protection for people who work near the roof edge according to many safety consultants.
• No annual inspections, maintenance, training, additional equipment or other hidden costs.

What are some other benefits of KeeGuard® Fall Protection Railing System?

• No penetration of the roof membrane. Therefore no possibility of a leaking roof and expensive repairs
• Collective fall protection. This means that the number of people that can be on a roof safely is only limited by the size and strength of the roof.
• Simple counterbalance construction of KeeGuard® fall protection system makes installation easy and straightforward
• In all safety matters the simpler the solution the better. KeeGuard® fall protection railing system should always be considered when possible when choosing a fall protection system

Permanent Solution for Roof Edge Safety

Safety recommendations for the protection of maintenance personnel in countries all over the world are moving to a "hierarchy of safety" where collective fall prevention solutions, as provided by The KeeGuard® system, are preferred over singular fall protection alternatives such as harnesses and wire systems. Collective fall prevention and fall protection can be achieved with the use of the KeeGuard® galvanized metal safety railing system. Lifeline, fall restraint, and fall arrest systems require individual equipment and specialized training. The KeeGuard® system acts as a passive barrier and protects all personnel, even those who may access the rooftop infrequently. The KeeGuard® Roof Edge Railing System works along side your existing personal fall protection devices.

KeeGuard® Offers Flexibility and Custom Solutions

The KeeGuard® modular component system offers maximum flexibility for your rooftop configuration. Almost any flat or low slope roof up to 3 degrees can be accommodated by galvanized metal safety railings. Your individually engineered KeeGuard® Fall Protection System can be used for bi-level or multi-level roofs, can be adapted to varying angle or circular configurations, and can be customized to accommodate ladderways, rooftop equipment, or other rooftop obstructions.

KeeGuard® Meets the Standard

KeeGuard® has been independently tested and meets or exceeds the following North America and International Requirements.

• OSHA Standard 29 CFR 1910.23
• OSHA Standard 29 CFR 1926.501, 29 CFR 1926.502
• Canadian National Building Code 4.1.10.1(1)(e), 4.1.10.1(2), 4.1.10.1(4)
• Ontario Building Code Section 4.1.10.1(1)(b), 4.1.10.1(2), 4.1.10.1(4)
• HSG-33 Health & Safety in Roof Work
• HSE Specialist Report No 15: 1988
• HSE Sheet 21 "Working on Flat Roofs Protection Against Falls"
• BS 6399: Part 2 1995 Wind Code
• EU Directives & CDM Regulations
• BGV A1: 2000, BGG 928 & BGR 184
• Health, Safety & Welfare Regulation 13 "Falls or Falling Objects" 1992
• NFE 85-003
• EN ISO 14122: PT3
• EN 13374
• The KeeGuard® Freestanding System is TÜV Tested

KGPVC10U Kit Includes:

• KGU135 x 3 - Main Upright Assembly with Kee Klamp fitting to attach counter balance system
• CB4PVC x 2 - 4 Free End Counterbalance Assembly - Plastic
• CB4PVCSH x 1 - 4 Free End Counterbalance Assembly - Plastic - Short
• D-RETURNS x 2 - D-Return Railing End
• HANDRAIL x 2 - Lenths of 1-1/2" galvanized horizontal rails 9' 10"' L

KGPVC13U Kit Includes:

• KGU135 x 4 - Main Upright Assembly with Kee Klamp fitting to attach counter balance system
• CB3PVC x 2 - Triple Free End Counterbalance Assembly - Plastic
• CB4PVC x 2 - 4 Free End Counterbalance Assembly - Plastic
• D-RETURNS x 2 - D-Return Railing End
• HANDRAIL x 2 - Lenths of 1-1/2" galvanized horizontal rails 13' L

KGPVC16U Kit Includes:

• KGU135 x 4 - Main Upright Assembly with Kee Klamp fitting to attach counter balance system
• CB3PVC x 2 - Triple Free End Counterbalance Assembly - Plastic
• CB4PVC x 2 - 4 Free End Counterbalance Assembly - Plastic
• D-RETURNS x 2 - D-Return Railing End
• HANDRAIL x 2 - Lenths of 1-1/2" galvanized horizontal rails 16' L

KGPVC21U Kit Includes:

• KGU135 x 5 - Main Upright Assembly with Kee Klamp fitting to attach counter balance system
• CB1PVC x 1 - Main Counterbalance Assembly - Plastic
• CB3PVC x 2 - Triple Free End Counterbalance Assembly - Plastic
• CB4PVC x 2 - 4 Free End Counterbalance Assembly - Plastic
• D-RETURNS x 2 - D-Return Railing End
• HANDRAIL x 2 - Lenths of 1-1/2" galvanized horizontal rails 21' L
