Tri-Arc U-Design 50° Incline Stairs for Crossover Platforms
Tri-Arc U-Design 50° Incline Stairs for Crossover Platforms
Model Number | Steps | Top Step Height | Clearance | Overall Height | Tread Width | Treads | Step Depth |
---|---|---|---|---|---|---|---|
UCL5003246 | 3 | 30" | 28" | 72" | 24" | Perforated | 10" |
UCL5004246 | 4 | 40" | 38" | 82" | 24" | Perforated | 10" |
UCL5005246 | 5 | 50" | 48" | 92" | 24" | Perforated | 10" |
UCL5006246 | 6 | 60" | 58" | 102" | 24" | Perforated | 10" |
UCL5007246 | 7 | 70" | 68" | 112" | 24" | Perforated | 10" |
UCL5008246 | 8 | 80" | 78" | 122" | 24" | Perforated | 10" |
UCL5009246 | 9 | 90" | 88" | 132" | 24" | Perforated | 10" |
UCL5003242 | 3 | 30" | 28" | 72" | 24" | Serrated | 10" |
UCL5004242 | 4 | 40" | 38" | 82" | 24" | Serrated | 10" |
UCL5005242 | 5 | 50" | 48" | 92" | 24" | Serrated | 10" |
UCL5006242 | 6 | 60" | 58" | 102" | 24" | Serrated | 10" |
UCL5007242 | 7 | 70" | 68" | 112" | 24" | Serrated | 10" |
UCL5008242 | 8 | 80" | 78" | 122" | 24" | Serrated | 10" |
UCL5009242 | 9 | 90" | 88" | 132" | 24" | Serrated | 10" |
Tri-Arc U-Design 50° Incline Stairs for Crossover Platforms

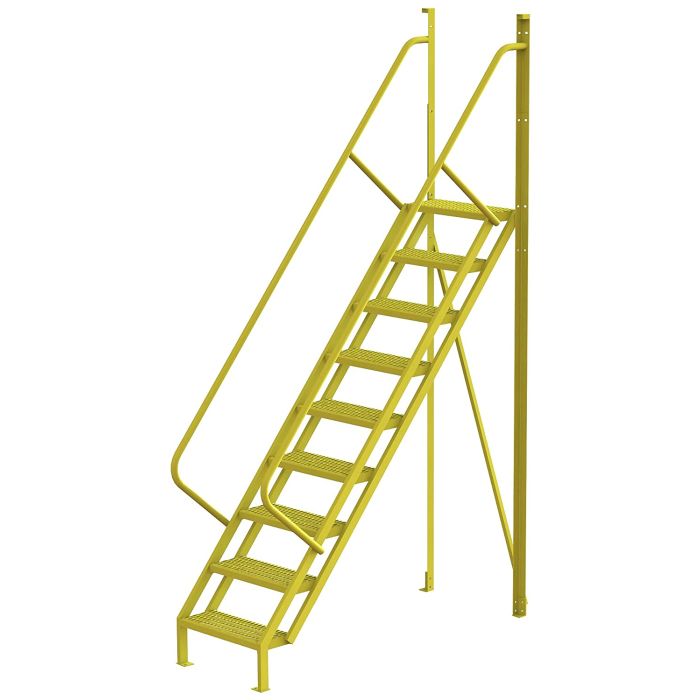

50° Incline for easy forward descent.
A crossover platform allows a person to safely walk over an obstacle or hazardous area instead of having to go around or through it. Crossovers can increase productivity as well as safety by improving access to hard-to-reach areas. You can select the parts needed to create your own specially configured U-Design crossover by following the steps below.
Step 1: Select Ladders by Height and InclineChoose the right ladders by determining your required height clearance, then select the ladder that has a greater clearance height from the table at right. U-Design also offers ladders in 3 different inclines to accommodate different available floor spaces.
Step 2: Select the Bridge Span PlatformsThe 20” and 30” bridge spans can be repeated or combined to create spans up to 90” long. Choose the combination of spans to exceed your required clearance width.
Step 3: Select the ConfigurationTurn platforms allow you to create various configurations other than a straight crossover. These configurations and the number of turn platforms required are shown in the image labeled "Designing a Crossover".
Features:
- Steel construction
- 1"x2" Reinforced rectangular tube
- Yellow powder coast finish
- 1000 Lb. capacity
- Clearance height is 2" below platform height
- Perforated or Grip Strut tread
- 42" Guardrail height
- Combine 20" or 30" Bridge spans to create desired horizontal clearance
- Leg kit required for spans greater than 90" in length
- Rail Kit item URK used in place of ladder to close off platform opening
Weight(LBS) | 0.000000 |
---|
