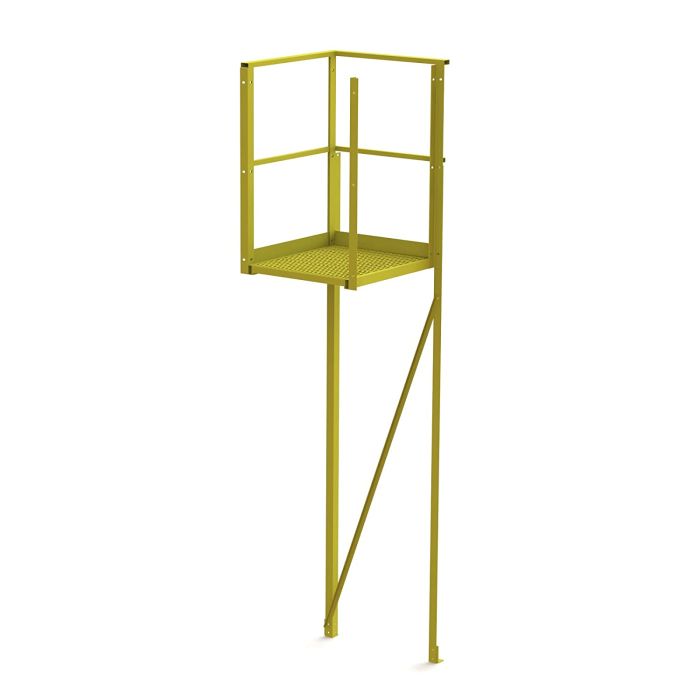

Tri-Arc U-Design Turn Platform for Crossover Platforms
Tri-Arc U-Design Turn Platform for Crossover Platforms
| Model Number | Steps | Top Step Height | Clearance | Overall Height | Tread Width | Treads |
|---|---|---|---|---|---|---|
| UCT03246 | 3 | 30" | 28" | 72" | 24" | Perforated |
| UCT04246 | 4 | 40" | 38" | 82" | 24" | Perforated |
| UCT05246 | 5 | 50" | 48" | 92" | 24" | Perforated |
| UCT06246 | 6 | 60" | 58" | 102" | 24" | Perforated |
| UCT07246 | 7 | 70" | 68" | 112" | 24" | Perforated |
| UCT08246 | 8 | 80" | 78" | 122" | 24" | Perforated |
| UCT09246 | 9 | 90" | 88" | 132" | 24" | Perforated |
| UCT03242 | 3 | 30" | 28" | 72" | 24" | Serrated |
| UCT04242 | 4 | 40" | 38" | 82" | 24" | Serrated |
| UCT05242 | 5 | 50" | 48" | 92" | 24" | Serrated |
| UCT06242 | 6 | 60" | 58" | 102" | 24" | Serrated |
| UCT07242 | 7 | 70" | 68" | 112" | 24" | Serrated |
| UCT08242 | 8 | 80" | 78" | 122" | 24" | Serrated |
| UCT09242 | 9 | 90" | 88" | 132" | 24" | Serrated |
Tri-Arc U-Design Turn Platform for Crossover Platforms
Leg kits are used when an overall bridge span length must be breater than 90". Select leg kits based on number of steps and place between bridge spans so that no span exceeds 90" between ladders, turn platform, or leg kits.
A crossover platform allows a person to safely walk over an obstacle or hazardous area instead of having to go around or through it. Crossovers can increase productivity as well as safety by improving access to hard-to-reach areas. You can select the parts needed to create your own specially configured U-Design crossover by following the steps below.
Step 1: Select Ladders by Height and InclineChoose the right ladders by determining your required height clearance, then select the ladder that has a greater clearance height from the table at right. U-Design also offers ladders in 3 different inclines to accommodate different available floor spaces.
Step 2: Select the Bridge Span PlatformsThe 20” and 30” bridge spans can be repeated or combined to create spans up to 90” long. Choose the combination of spans to exceed your required clearance width.
Step 3: Select the ConfigurationTurn platforms allow you to create various configurations other than a straight crossover. These configurations and the number of turn platforms required are shown in the image labeled "Designing a Crossover".
Features:
- Steel construction
- 1"x2" Reinforced rectangular tube
- Yellow powder coast finish
- 1000 Lb. capacity
- Clearance height is 2" below platform height
- Perforated or Grip Strut tread
- 42" Guardrail height
- Combine 20" or 30" Bridge spans to create desired horizontal clearance
- Leg kit required for spans greater than 90" in length
- Rail Kit item URK used in place of ladder to close off platform opening
| Weight(LBS) | 0.000000 |
|---|
