Rear View Safety Backup Camera Systems with Side Cameras

Rear View Safety Backup Camera Systems with Side Cameras

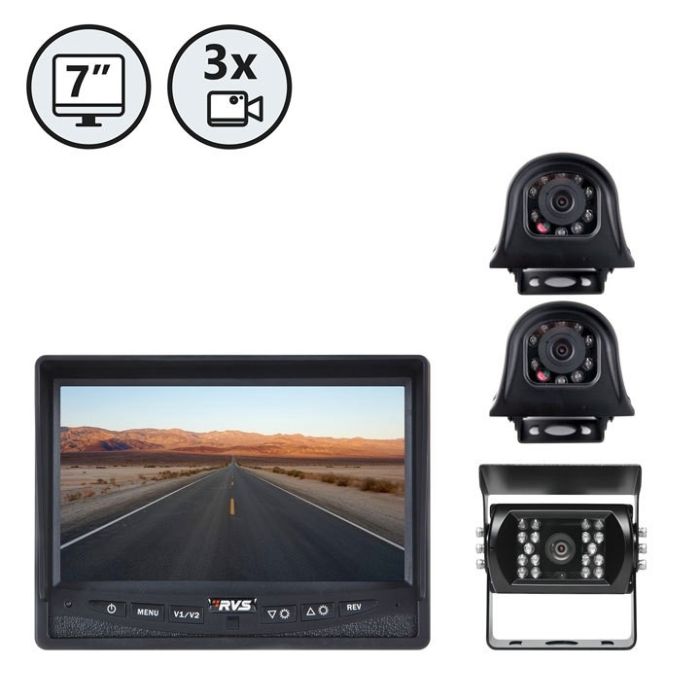

This system is complete with a crystal clear LED Digital Panel color monitor with distance grid lines and mirror-image capability, two side CCD cameras each with a 120° viewing angle and 30-foot infra-red night vision, 1 heavy-duty CCD 130° backup camera with 18 built-in Infra-reds and all the wires, connectors and mounts you will need. With built-in system memory, this innovative system automatically saves previous option settings even after it's turned off. The RVS-770616N has two viewing options. The camera view can be triggered when the vehicle is put into reverse, or remain on continuously. The cameras are completely waterproof with an IP68/IP69K rating, strong and reliable, shock resistant, with a 20G vibration rating (highest in the industry), and the system comes with a full year warranty.

BACKUP CAMERA
This 1/3" Sharp® CCD Color Camera is built with heavy duty zinc metal which encases the 2.5® mm Sharp lens. It has a viewing angle of 130° and 620 TV lines, which means you get the best quality image with no blind spots. The 18 infra-red lights allow you to see up to 50 feet even in the darkest of night, and the foam around the lens guarantees no glare from these infra-reds. With an IP69K rating, this camera is fit to ride out any storm and boasts a 20G vibration rating. This device comes equipped with Aircraft Grade cable connectors.

WIDESCREEN MONITOR
Our LED Digital Panel Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 3(RGB) x 480. The distance grid lines that come standard with these monitors are optional and adjustable. It has built-in speakers, and its menu can be navigated with the on dash buttons, or with the remote, which comes included.

QUAD VIEW MONITOR
Our Quad View Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 480. This monitor allows connection of up to four cameras and has the ability to view each camera separately or all at the same time with multiple options in between. It comes with distance grid lines, built-in speakers and can easily be flush mounted.

Features:

• Backup Camera System with Three Cameras
• LED Digital Panel Color Display
• 130° Ultra Wide Viewing Angle
• Waterproof Backup Cameras with Infra-Red Night Vision
• Optional Quad View Upgrade (See Item Options)

Note: The quad view monitor options on this system are for 12V vehicles.
