Rear View Safety MV1 Backup Cameras
Rear View Safety MV1 Backup Cameras
| Model Number | Camera Style | Cable Length | Connection |
|---|---|---|---|
| RVS-MV1-01 | Backup | 66' | 5-Pin |
| RVS-MV1-02 | Backup | 33' | 5-Pin |
| RVS-MV1-03 | Backup | 16' | 5-Pin |
| RVS-MV1-04 | Backup | 66' | RCA Adapter |
| RVS-MV1-05 | Backup | 33' | RCA Adapter |
| RVS-MV1-06 | Backup | 16' | RCA Adapter |
| RVS-MV1-NC | Backup | No Cable | None |
| RVS-MV1-N-01 | Forward Facing | 66' | 5-Pin |
| RVS-MV1-N-02 | Forward Facing | 33' | 5-Pin |
| RVS-MV1-N-03 | Forward Facing | 16' | 5-Pin |
| RVS-MV1-N-04 | Forward Facing | 66' | RCA Adapter |
| RVS-MV1-N-05 | Forward Facing | 33' | RCA Adapter |
| RVS-MV1-N-06 | Forward Facing | 16' | RCA Adapter |
| RVS-MV1-N-NC | Forward Facing | No Cable | None |
| RVS-MV1-L-01 | Left Side (Driver) | 10' | 5-Pin |
| RVS-MV1-L-02 | Left Side (Driver) | 10' | RCA Adapter |
| RVS-MV1-R-01 | Right Side (Passenger) | 10' | 5-Pin |
| RVS-MV1-R-02 | Right Side (Passenger) | 10' | RCA Adapter |
Rear View Safety MV1 Backup Cameras
The MV1 Backup Camera can mount either to the side of the vehicle as a side camera or on the back of a vehicle as a backup camera. Its small size and OEM look make this a very popular camera choice. The camera is very easy to install and makes hitching and backing up easy. Camera comes with cable (select length from dropdown) and the option for a HD rear camera 5-pin connection (to connect to our systems) or an RCA adapter (to connect to an external display).
Note: If you choose the left or right camera type, the connection will be female.
Note: In order to install this camera you must use the 3M adhesive to attach the camera to the back/side/front of the vehicle and drill a 3/8" hole for the cable. Secure the camera from the inside with the included washers.
Features:
- Mounts flush against vehicle
- 150° all-encompassing angle
- Compact design
- Excellent night vision
- Completely waterproof - IP68 rating

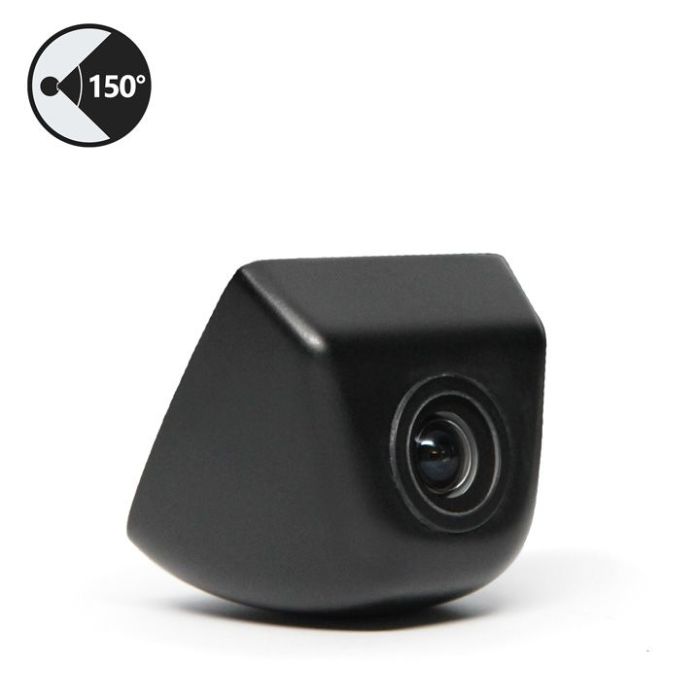

Mv1 Backup CameraThe MV1 Backup Camera is built with an MT9V139 sensor and a lens with an ultra wide viewing angle of 150°. It's tiny size (less than an inch long, wide and deep) makes it ideal for smaller vehicles and allows its installation to be virtually invisible. It mounts flush against the vehicle and with an IP68 rating is fit to operate in almost all weather conditions.
