Rear View Safety Single Camera Backup Camera Systems with Trailer Tow Quick Connect Kit
Rear View Safety Single Camera Backup Camera Systems with Trailer Tow Quick Connect Kit
| Model Number | Camera Qty | Side Cameras | Cable Length | Monitor Size | Monitor Mount |
|---|---|---|---|---|---|
| RVS-770613-213-01 | 1 | None | 66' Camera Cable, 26' Monitor Cable, and 12' Pigtail | 7" | Standard |
| RVS-770613-213-02 | 1 | None | 66' Camera Cable, 26' Monitor Cable, and 12' Pigtail | 9" | Standard |
Rear View Safety Single Camera Backup Camera Systems with Trailer Tow Quick Connect Kit

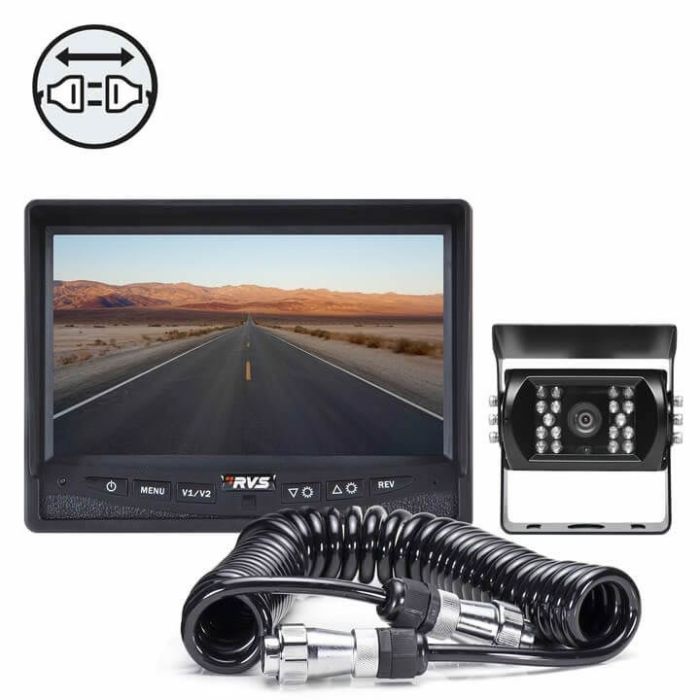

This backup camera system is perfect for the fifth wheel application. The system is complete with your choice of a 7" LED Digital Panel Color Monitor or 9" TFT LCD Digital Color Rear View Monitor, both with mirror image capability and distance grid lines, a 3 channel power harness with automatic system switch, one 130° CCD camera with 50 foot infra-red night vision and all the wires, connectors and mounts you will need. The 5th wheel rear view camera system is completely weatherproof with an IP69K rating. The quick connect/disconnect cable is 66' to camera, 26' to monitor with a 12' pigtail. The system is strong and reliable with a camera that boasts a 20G vibration and 100G impact rating (highest in the industry) and comes with a full year warranty.
Features:
- Trailer Tow Quick Connect Kit - for Trucks and Trailers
- 7" OR 9" Color Monitor (See Item Options)
- Completely Waterproof Backup Camera - IP69K
- 130° Viewing Angle with 18 Infra-red Night Vision Lights
- Built-In Mic on Camera and Speakers on Monitor for Audio
Backup CameraThis 1/3" Sharp® CCD Color Camera is built with heavy duty zinc metal which encases the 2.5 mm Sharp® lens. It has a viewing angle of 130° and 620 TV lines, which means you get the best quality image with no blind spots. The 18 infra-red lights allow you to see up to 50 feet even in the darkest of night, and the foam around the lens guarantees no glare from these infra-reds. With an IP69K rating, this camera is fit to ride out any storm and boasts a 20G vibration. This device comes equipped with Aircraft Grade cable connectors.
Widescreen MonitorLED Digital Panel Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X3 (RGB) x 480. The distance grid lines that come standard with these monitors are optional and adjustable. It has built-in speakers, and its menu can be navigated with the on dash buttons or with the remote, which comes included.
