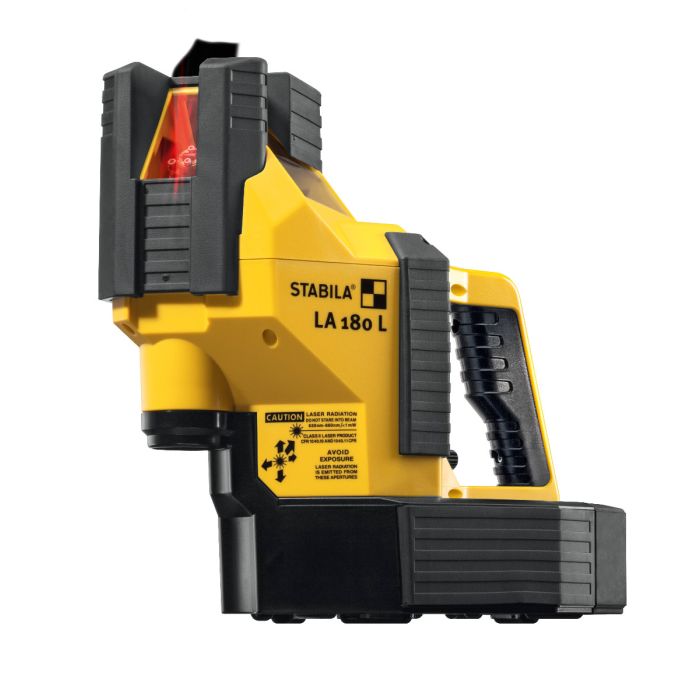

Stabila 02180 LA 180L Layout Station with Auto Alignment

Fully automatic, long range layout. Auto alignment allows you to layout square with only one person in just seconds. Layout over ranges above 50ft is a time-consuming and high risk job. When layout errors occur high follow-up costs will be the result. The LA 180 L self-leveling multi-line laser allows you to layout greater than 20ft up to 300ft fast and accurately. The REC 410 Line RF receiver controls the LA 180 L using the STABILA wireless AUTO ALIGNMENT technology. One press of a button and the laser adjusts automatically to the position of the receiver.

Features:

• Self-levelling multi-line laser for precision layout.
• AUTO ALIGNMENT function: Receiver automatically controls the positioning of the laser at distances of up to 150ft – fully automatic axis transfer and creation of right angles on floors, walls and ceilings, all at the same time.
• Precise alignment without losing the reference point.
• Pulsed laser lines for precise measurements with the receiver (up to 300ft) indoors and outdoors.
• Versatile: 3 vertical lines, 1 horizontal line and plumb-line function.
• Extra sharp, easy-to-see lines for fast and efficient work directly on the laser line – visible range up to 100ft indoors.
• Unique housing shape for positioning in room corners and over edges (e.g. concrete slab) – rapid checking of right angles.
• 5/8-11 tripod mount.
• Includes: Laser, receiver with bracket, laser enhancement glasses, magnetic red target cards/plates, batteries, hard shell case.

Applications:

• This is a fast and precise layout tool. It is designed for applications > 20ft up to 300ft.
• Commercial construction, HVAC, masonry, concrete and top end landscape jobs.
• Drywall construction – suspending ceilings, positioning interior and partition walls within a range of 300ft.
• Framing - layout wall positions at the push of a button. Quickly establish square, even when the slab or foundation you're working on is out of square.
• Concrete – Layout forms perfectly straight and square.
• Optional laser and receiver mounts available for most re-usable forming systems.

Technical data:

• Laser class : 2
• Output : < 1 mW
• Laser wavelength : 635 nm
• Self-leveling range : +/- 5°
• Levelling accuracy : +/- 3/32 in @ 100 ft
• Line straightness : +/- 1/8 in @ 100 ft
• Laser beam accuracy (down) : +/- 3/32 in @ 100 ft
• Measuring range of set receiver : 328 ft
• Measuring range of visible point : 65 ft
• Measuring range of visible line : 65 ft
• Operating life : 20 h
• Protection class : IP 54
• Tripod connection : 5/8"-11
