Prime Design Lock-N-Go Ladder Clamp System for DeployPro Ladder Racks
Prime Design Lock-N-Go Ladder Clamp System for DeployPro Ladder Racks
| Model Number | Part Description |
|---|---|
| PLR-8229 | For Extension Ladders (23" overall width) |
| PLR-8234 | For Step and Extension Ladders (29-1/2" overall width) |
Fast, Safe, & Secure Ladder Storage
Prime Design is pleased to introduce DeployPro™ Lock-N-Go. Improve safety and increase productivity with the Lock-N-Go ladder clamping system. This optional DeployPro upgrade replaces the standard cam buckle straps and provides a strong, lockable, method for securing ladders to the DeployPro system. Its fast, easy operation helps reduce the time spent storing and removing ladders from DeployPro. With Lock-N-Go, ladders stay safely in place while your fleet is on the GO!
Improve safety and increase productivity with the Lock-N-Go ladder clamping system. This optional DeployPro upgrade replaces the standard cam buckle straps and provides a strong, lockable, method for securing ladders to the DeployPro system. It’s fast, easy operation helps reduce the time spent storing and removing ladders from DeployPro. With Lock-N-Go, ladders stay safely in place while your fleet is on the GO!

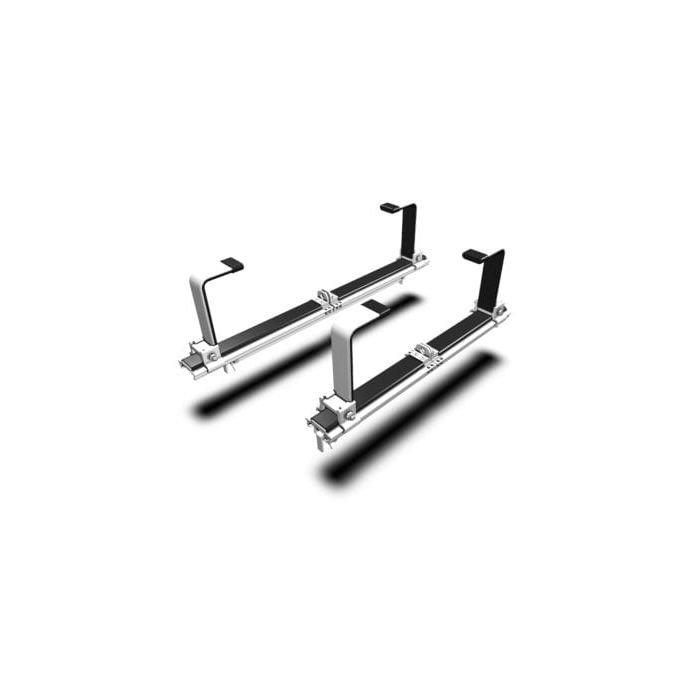

The Lock-N-Go design features two Z-posts on a support that slide in and out when levers on each side are released. With the ladder secured using Lock-N-Go, raise the DeployPro into its stowed position and the vehicle is ready for transit.
How does it work?
As illustrated in the images below, the Lock-N-Go design features two Z-posts on a support that slide in and out when levers on each side are released. Pull both levers to release the slide clamping system. Slide both Z-posts to their outward position and position the ladder on the DeployPro. Next, slide the Z-posts inward until the levers engage (a “click” will be heard) securing the ladder in place. Optionally, a padlock can then be inserted into the Lock-N-Go’s padlock-ready center to deter ladder theft. With the ladder secured using Lock-N-Go, raise the DeployPro into its stowed position and the vehicle is ready for transit.
- Pull both levers to release the slide clamping system
- Slide both Z-posts outward to position ladder on the DeployPro
- Slide Z-posts inward until the levers engage (a "click" will be heard), to secure ladder in place
- Insert optional padlock into the Lock-N-Go’s padlock-ready center to deter ladder theft
Capacity:
- Max Ladder Weight: 75 lbs
- Max Ladder Length: 32'
- Max Ladder Section: 16'
