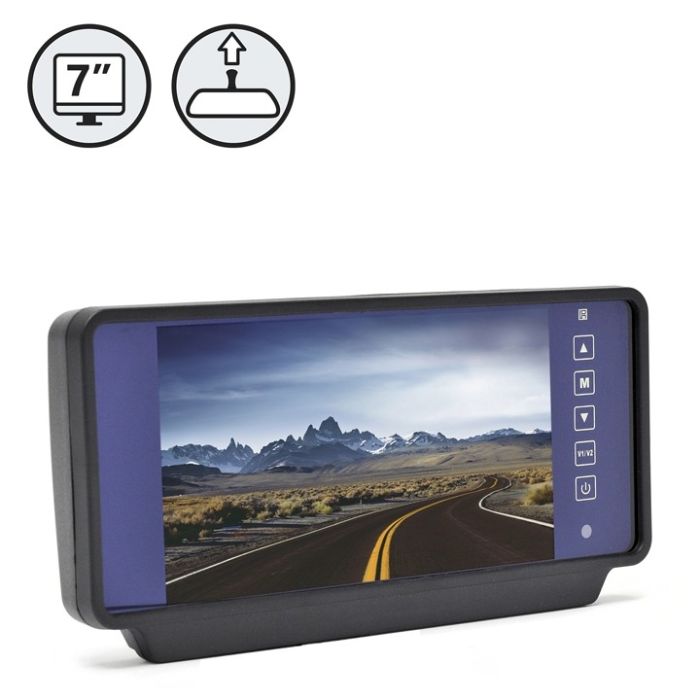

Rear View Safety 7" Rear View 3-Channel Replacement Mirror Monitors
Rear View Safety 7" Rear View 3-Channel Replacement Mirror Monitors
Model Number | Monitor Size | Part Description |
---|---|---|
RVS-619N-NM | 7" | Standard Replacement |
RVS-619D-NM | 7" | Standard Replacement for Dodge 2010 and Newer |
RVS-619S-NM | 7" | Standard Replacement for Sprinter 2010 and Newer |
Our 7" TFT LCD Rear View Mirror Monitor is a feature-rich monitor that comes with optional grid lines, a built-in speaker, and 3 channel camera capabilities. To control the monitor’s functions, either use the sleek touch screen or the included remote control. A 3 port power harness is included with this monitor. The mirror monitor fits all Dodge and Sprinter vehicles from 2010 and onwards. Simply select your vehicle type from the drop-down menu and we will provide the correct mounting bracket for that type. For Ford and Chevy, vehicles, select Replacement (Standard). For all other vehicles, we will provide a button to attach to the windshield to mount the monitor.
Features:
- 7" TFT LCD Replacement Mirror Monitor
- Attaches to windshield replacing rear view mirror
- 3 Port Harness - can add an additional two cameras
- Touch screen buttons and remote control included
Contains:
- 1 x 7" TFT LCD Digital Replacement Mirror Monitor
- 1 x 3 Port Power Harness
- 1 x Remote Control
- 1 x Screw Kit for installation
Monitor Specs:
- Type: TFT LCD
- Screen Size: 7"
- Dot Resolution: 800 X 3 (RGB) X 480
- Display Format/Contrast: 16:9
- Display Brightness: 400cd/㎡
- Viewing Angle: 90° Min
- Video Input: 3 Channel
- Video Source: 1Vp-p, 75Ω
- Power Supply: DC 12V-24V (+/- 10%)
- Power Consumption: 5W
- Operating Temperature: -10°C ~ +65° C
- Video System: Auto NTSC/PAL
- Overall Dimensions: 9" (L) x 4.5" (H) x 1" (D)
- Weight: 400G
- Impact Rating: 5G
- Dot Pitch: 0.192 (H) X 0.1805 (V)
- Sync System: Internal
Please Note: This monitor does not have a reflective glass to be used as a rear view mirror, it is a full 7" display.
Weight(LBS) | 0.000000 |
---|
