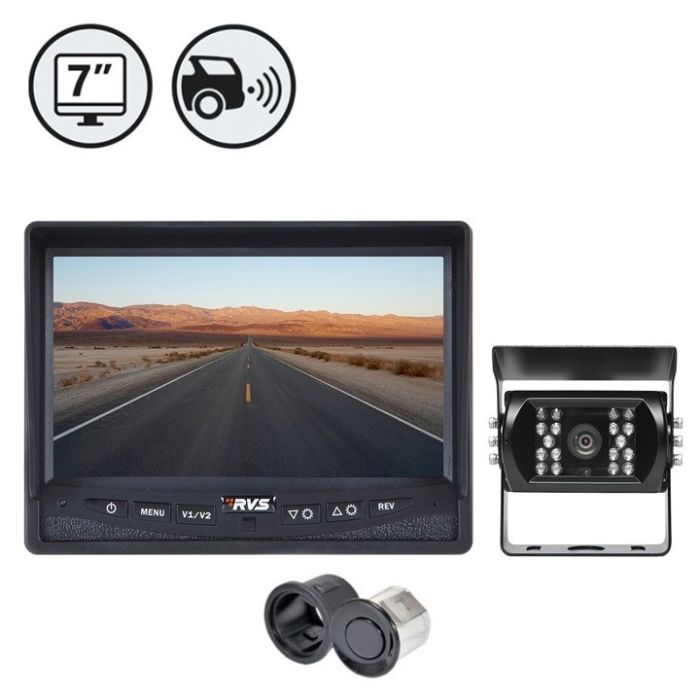

Rear View Safety Backup Camera Systems with Integrated Rear Sensors
Rear View Safety Backup Camera Systems with Integrated Rear Sensors
| Model Number | Camera Qty | Monitor Size | Cable Length | Monitor Mount |
|---|---|---|---|---|
| RVS-770613-NM-112-01 | 1 | 7" | 66' | Standard |
| RVS-770613-NM-112-02 | 1 | 7" | 33' | Standard |
| RVS-770613-NM-112-03 | 1 | 9" | 66' | Standard |
| RVS-770613-NM-112-04 | 1 | 9" | 33' | Standard |
| RVS-770613-NM-112-05 | 3 | 7" | 66' Rear | (2) x 33' Side | Standard |
| RVS-770613-NM-112-06 | 3 | 7" | 33' Rear | (2) x 16' Side | Standard |
| RVS-770613-NM-112-07 | 3 | 7" QuadView | 66' Rear | (2) x 33' Side | Standard |
| RVS-770613-NM-112-08 | 3 | 7" QuadView | 33' Rear | (2) x 16' Side | Standard |
| RVS-770613-NM-112-09 | 3 | 9" | 66' Rear | (2) x 33' Side | Standard |
| RVS-770613-NM-112-10 | 3 | 9" | 33' Rear | (2) x 16' Side | Standard |
| RVS-770613-NM-112-11 | 3 | 9" QuadView | 66' Rear | (2) x 33' Side | Standard |
| RVS-770613-NM-112-12 | 3 | 9" QuadView | 33' Rear | (2) x 16' Side | Standard |
Rear View Safety Backup Camera Systems with Integrated Rear Sensors
This Backup Camera system comes with backup sensors that integrate flawlessly into the backup camera system alerting you audibly about potential hazards behind your vehicle. With this system you'll be able to see your blind spots and be alerted about hazards behind your vehicle. These sensors when integrated into our system not only alert you audibly but also display on the monitor the distance you have behind your vehicle. The Backup Camera System is completely weatherproof with an IP69K rating. This system comes complete with everything needed to install so that it can go straight from the box to protecting your safety.
BACKUP CAMERAThis 1/3" Sharp® CCD Color Camera is built with heavy duty zinc metal which encases the 2.5® mm Sharp lens. It has a viewing angle of 130° and 620 TV lines, which means you get the best quality image with no blind spots. The 18 infra-red lights allow you to see up to 50 feet even in the darkest of night, and the foam around the lens guarantees no glare from these infra-reds. With an IP69K rating, this camera is fit to ride out any storm and boasts a 20G vibration rating. This device comes equipped with Aircraft Grade cable connectors.
WIDESCREEN MONITOR Our LED Digital Panel Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 3(RGB) x 480. The distance grid lines that come standard with these monitors are optional and adjustable. It has built-in speakers, and its menu can be navigated with the on dash buttons, or with the remote, which comes included.
QUAD VIEW MONITOR Our Quad View Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 480. This monitor allows connection of up to four cameras and has the ability to view each camera separately or all at the same time with multiple options in between. It comes with distance grid lines, built-in speakers and can easily be flush mounted.
Features:
- Camera System with Integrated Backup Sensors
- Monitor Displays Camera and Distance to Obstacles
- System Provides Visual and Audible Alert from Obstacles
- Waterproof Backup Camera (IP69K) with Infra-Red Night Vision
- Just One Cable to Run for Both Camera and Sensors
Note: The quad view monitor options on this system are for 12V vehicles.
| Weight(LBS) | 0.000000 |
|---|
