Rear View Safety Backup Camera Systems with Three Cameras
Rear View Safety Backup Camera Systems with Three Cameras
| Model Number | Monitor Size | Cable Length | Camera Qty | Monitor Mount |
|---|---|---|---|---|
| RVS-770615-NM-01 | 7" | (3) x 66' | 3 | Standard |
| RVS-770615-NM-02 | 7" | (3) x 33' | 3 | Standard |
| RVS-770615-NM-03 | 7" QuadView | (3) x 66' | 3 | Standard |
| RVS-770615-NM-04 | 7" QuadView | (3) x 33' | 3 | Standard |
| RVS-770615-NM-05 | 9" | (3) x 66' | 3 | Standard |
| RVS-770615-NM-06 | 9" | (3) x 33' | 3 | Standard |
| RVS-770615-NM-07 | 9" QuadView | (3) x 66' | 3 | Standard |
| RVS-770615-NM-08 | 9" QuadView | (3) x 33' | 3 | Standard |
Rear View Safety Backup Camera Systems with Three Cameras

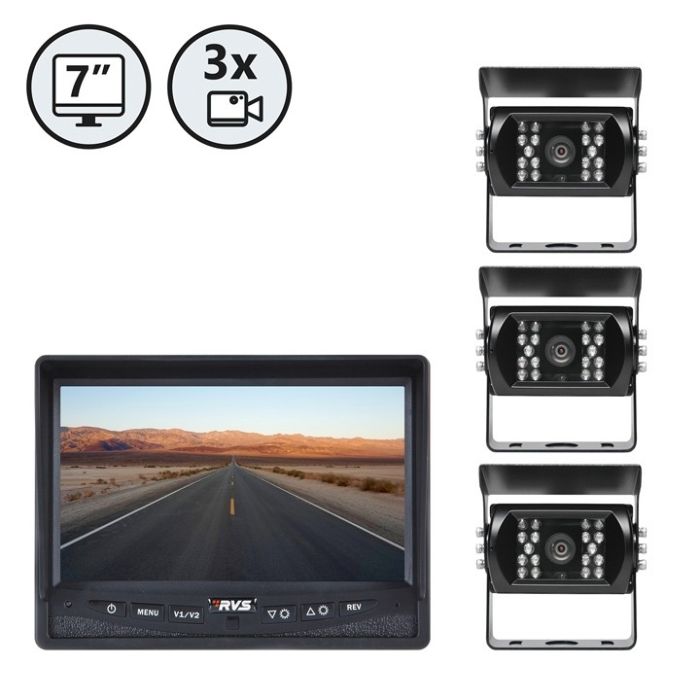

This three camera system is complete with a crystal clear LED Digital Panel color monitor with distance grid lines and mirror image capability, a power harness, three (3) 130° CCD cameras with 50 foot infra-red night vision and all the wires, connectors and mounts you will need. The cameras are completely weatherproof with an IP69K rating, strong and reliable, shock resistant, with a 20G vibration rating (highest in the industry), and the system comes with a full year warranty.
System can be upgraded to the Quad View Monitor where multiple cameras can be viewed simultaneously.
BACKUP CAMERAThis 1/3" Sharp® CCD Color Camera is built with heavy duty zinc metal which encases the 2.5® mm Sharp lens. It has a viewing angle of 130° and 620 TV lines, which means you get the best quality image with no blind spots. The 18 infra-red lights allow you to see up to 50 feet even in the darkest of night, and the foam around the lens guarantees no glare from these infra-reds. With an IP69K rating, this camera is fit to ride out any storm and boasts a 20G vibration rating. This device comes equipped with Aircraft Grade cable connectors.
WIDESCREEN MONITOR Our LED Digital Panel Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 3(RGB) x 480. The distance grid lines that come standard with these monitors are optional and adjustable. It has built-in speakers, and its menu can be navigated with the on dash buttons, or with the remote, which comes included.
QUAD VIEW MONITOR Our Quad View Color Monitor comes with a Super Sharp Digital Display and a pixel resolution of 800 X 480. This monitor allows connection of up to four cameras and has the ability to view each camera separately or all at the same time with multiple options in between. It comes with distance grid lines, built-in speakers and can easily be flush mounted.
Features:
- Backup Camera System with Three Cameras
- LED Digital Panel Color Display
- 130° Ultra Wide Viewing Angle
- Waterproof Backup Cameras with Infra-Red Night Vision
- Optional Quad View Upgrade (See Item Options)
Note: The quad view monitor options on this system are for 12V vehicles.
| Weight(LBS) | 0.000000 |
|---|
