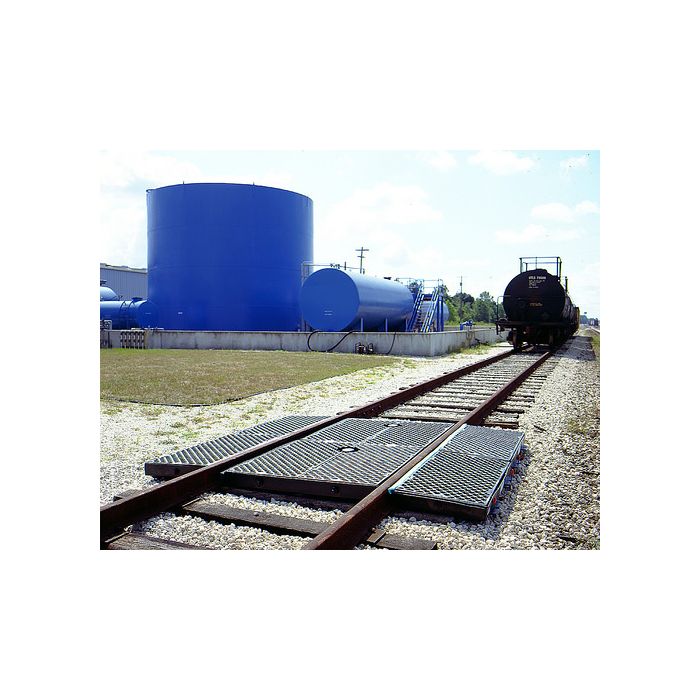

UltraTech Complete Railroad Spill Containment Systems

Downloadable form under the Documents Tab Must be filled out and submitted with your order.

Capture Hazardous Spills From Railroad Tanker Cars

Features and Specifications:

• Ultra-Track Pans have been designed to provide railroad spill containment at industrial rail sidings and locomotive maintenance facilities. Available in virtually any length, Ultra-Track Pans may be used to collect small spills and leaks OR to capture and channel off significant spills caused by defective equipment or a major overflow.
• Prevent costly cleanup and regulatory fines from railcar spills and chemical spills.
• Modular Design - Center and Side Pans are 53.5" long; railroad spill containment areas can be easily assembled to any length desired
• All-polyethylene Construction - Rugged Track Pans withstand harsh chemicals and are designed to function in temperatures ranging from -40°F to +140°F
• Sealed System - Polyethylene gaskets keep spills from falling between the rails and Pans.
• Trucks and other vehicles can drive over Track Pans with grates in place (NOTE:  To drive over Track Pans, firm footing must be beneath the Pans; also must "ramp up" to Side Pans with asphalt or concrete)
• An economical, easy to install railroad spill solution.
• Modular Track Pan design can be customized to meet your specific railroad spill containment needs.

• Optional Track Pan Covers Keep Rainwater Out of the Pans, Providing Effective Stormwater Management.
• Polyethylene Covers are left in place until the railcar(s) arrive to be off-loaded or loaded. Lightweight covers mechanically lock into the polyethylene decking and will not blow off in windy conditions.
• Unique stormwater feature is designed to eliminate "pooling" of rain that falls on top of the Center Pan Covers; rain is channeled onto the ballast between the tracks, stays out of the Pans.
• Ultra-Track Pans Are Available In Two (2) Models:
  • Track Pans and Grates, No Covers
  • Track Pans with Grates and Covers
• Low Maintenance - unlike carbon steel track pans, Ultra-Track Pans will not rust or corrode. Polyethylene resin is treated with a UV inhibitor, resists degrading effects of the sun.
• Low Cost Installation — Lightweight Track Pans can be easily installed without heavy lifting equipment, i.e., forklifts, cranes, backhoes, etc. Minimal tools and labor required.
• Slip Resistant Surfaces - Pans, grates and covers have been designed with safety in mind. All top surfaces resist slips when wet or oily.
• Long Work Life - Estimated to perform 20-30 years.
• Meets SPCC and EPA Stormwater Management Regulations.
• Also meets New York State Chemical Bulk Storage Regulation Section 599.17c — Secondary Containment for Transfer Stations.
