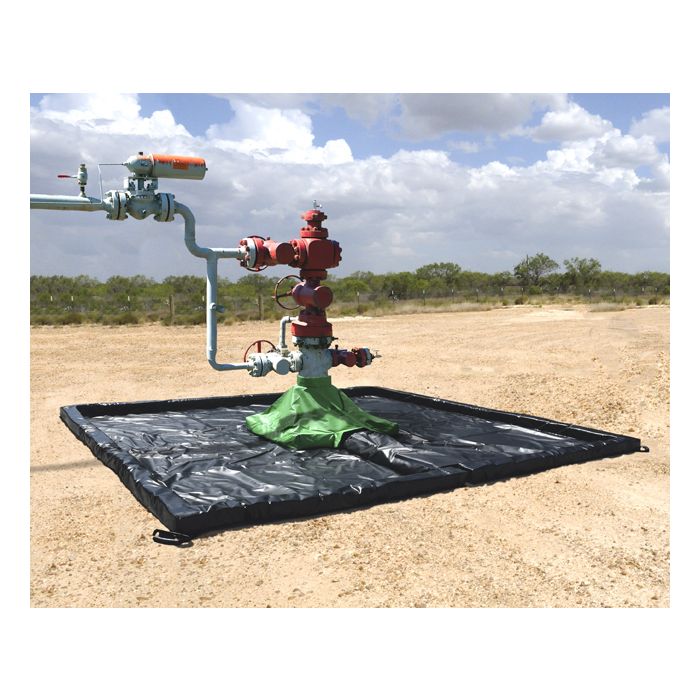

UltraTech Ultra-Wellhead Berms with Optional Hood

Protect the environment around wellheads from drips and spills

The Ultra-Wellhead Berm helps to protects the environment around wellhead sites from drips and spills. The heavy-duty material is built to last and forms an impermeable barrier between oil or chemical spills resulting from well servicing operations and the ground beneath.

Features:

• Capture, collect and contain drips and spills that come from wellheads. Engineered to provide complete (360˚) protection.
• Heavy-duty material (Copolymer 2000™) is durable enough to withstand harsh oilfield conditions and provides excellent chemical resistance.
• Optional hood uses draw string and hook and loop closure to securely wrap around the wellhead - further minimizing ground exposure.
• Weighted flap bridges the gap between sections and provides a liquid-tight seal.
• The 24" tall Wellhead Berm Hood has an adjustable collar that closes to a 10-1/2" dia. opening.
• Inner opening, inside dimensions: 24" x 24" (610 mm x 610 mm)
• A weighted perimeter base provides easy installation of the hood and ensures it will stay in place.

Model Specs:

• Material: Copolymer 2000™ (Green Hood on Model 8858 is 22oz. PVC)
• Wall Height in. (mm): 4 (102)
• Outside Dimensions ft. (m): 10.5 x 10.5 (3.2 x 3.2)
• Inner Opening Inside Dims. in. (mm): 24 x 24 (610 x 610)
• Containment Capacity gal. (L): 217 (821)

WARNING: This item can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP) which is known to the State of California to cause Cancer, Birth Defects, or Reproductive Harm. For more information visit www.P65Warnings.ca.gov.
