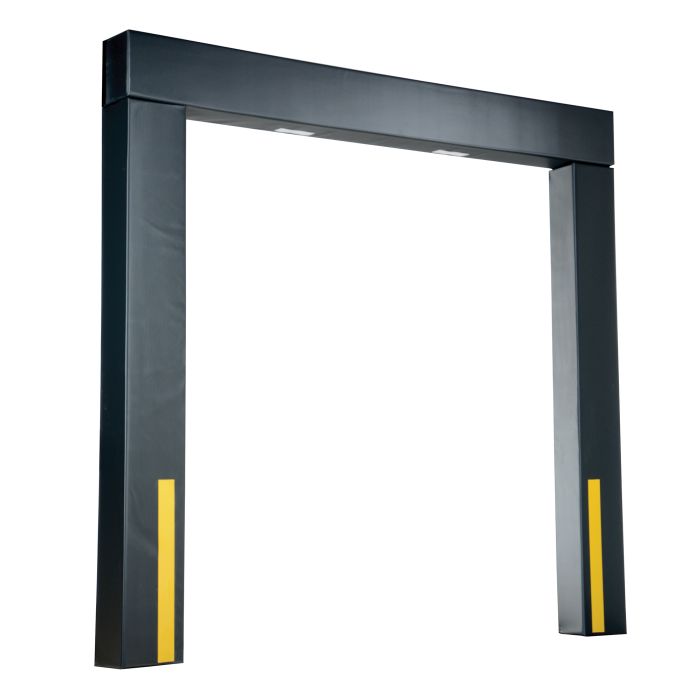

Vestil 10'W x 9'H Dock Seals with 8' x 8' Openings
Estimate Shipping
Vestil 10'W x 9'H Dock Seals with 8' x 8' Openings
| Model Number | Projection | Overall Height | Overall Width | Opening Size | Price | Qty |
|---|---|---|---|---|---|---|
| D-150-17 | 17" | 9' | 8' x 8' |
$1,198.53
|
|
|
| D-150-12 | 12" | 9' | 8' x 8' |
$988.16
|
|
|
| D-150-16 | 16" | 9' | 8' x 8' |
$1,181.87
|
|
|
| D-150-11 | 11" | 9' | 8' x 8' |
$926.88
|
|
|
| D-150-20 | 20" | 9' | 8' x 8' |
$1,254.16
|
|
|
| D-150-15 | 15" | 9' | 8' x 8' |
$1,167.89
|
|
|
| D-150-10 | 10" | 9' | 8' x 8' |
$907.50
|
|
|
| D-150-19 | 19" | 9' | 8' x 8' |
$1,231.96
|
|
|
| D-150-14 | 14" | 9' | 8' x 8' |
$1,138.28
|
|
|
| D-150-18 | 18" | 9' | 8' x 8' |
$1,219.87
|
|
|
| D-150-13 | 13" | 9' | 8' x 8' |
$1,006.69
|
|
Description
Important Note: Orders for this product will not go into production until an approval drawing has been signed for the product.
The superior 36 oz. nylon reinforced vinyl facing has a higher tear strength than equivalent weight hypalon. The chemically sealed ends prevent moisture infiltration. It is mounted on and bonded on a durable wolmanized wood and contains a full height air escape tunnel. The unit consists of a three (3) piece construction (12" high; sides - beveled sides with 9-1/2" width at the wall and 12" width at the face) and a through the wall installation kit that is included. 5" maximum compression is recommended. Application with a flush dock to building in conjunction with an Edge-O-Dock use a twenty (20) inch projection Dock Seal. This unit is non-returnable.
