Vestil 24"W Aluminum Wheel Ramps
Product Code:
Vestil_24W_Aluminum_Wheel_Ramps
{"delivery":{"48845":false,"48845_bank":null,"48845_bank_range":null,"cutoftime":false,"holidays":["2026-08-08","2026-08-09","2026-08-15","2026-08-16","2026-08-22","2026-08-23","2026-08-29","2026-08-30","2026-09-05","2026-09-06","2026-09-12","2026-09-13","2026-09-19","2026-09-20","2026-09-26","2026-09-27","2026-10-03","2026-10-04","2026-10-10","2026-10-11","2026-10-17","2026-10-18","2026-10-24","2026-10-25","2026-10-31","2026-11-01","2026-11-07","2026-11-08","2026-11-14","2026-11-15","2026-11-21","2026-11-22","2026-11-28","2026-11-29"]},"shipping":{"48845":{"from":"","to":"","text":"Q2xpY2sgSW5kaXZpZHVhbCBNb2RlbCBOdW1iZXJzIEJlbG93LCBvciBhZGQgdG8gQ2FydCB0byBWaWV3IExlYWQgVGltZXM=","enable":6},"48845_bank":null,"48845_bank_range":null,"cutoftime":false,"holidays":["2026-08-08","2026-08-09","2026-08-15","2026-08-16","2026-08-22","2026-08-23","2026-08-29","2026-08-30","2026-09-05","2026-09-06","2026-09-12","2026-09-13","2026-09-19","2026-09-20","2026-09-26","2026-09-27","2026-10-03","2026-10-04","2026-10-10","2026-10-11","2026-10-17","2026-10-18","2026-10-24","2026-10-25","2026-10-31","2026-11-01","2026-11-07","2026-11-08","2026-11-14","2026-11-15","2026-11-21","2026-11-22","2026-11-28","2026-11-29"]},"dateFormat":"MM\/dd\/yy","created_at":"2026-10-05 02:14:39"}
Multiple Heights and Lengths to Choose From View More
Estimate Shipping
Loading...

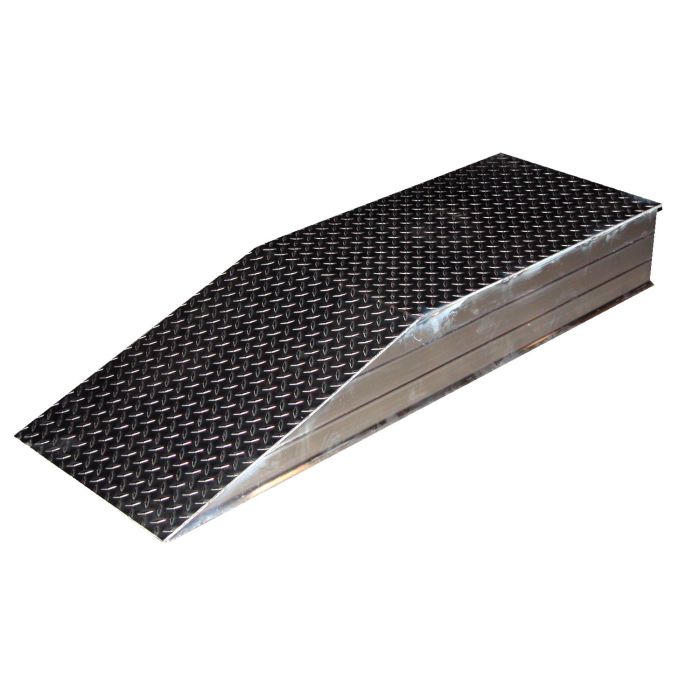

Vestil 24"W Aluminum Wheel Ramps
| Model Number | Height | Overall Length | Level Top Length | Description | Price | Qty |
|---|---|---|---|---|---|---|
| ATWR-24-6-48 | 6" | 48" | 30" | Ramp |
$650.52
|
|
| ATWR-24-6-54 | 6" | 54" | 36" | Ramp |
$713.41
|
|
| ATWR-24-6-60 | 6" | 60" | 42" | Ramp |
$808.61
|
|
| ATWR-24-6-102 | 6" | 102" | 84" | Ramp |
$1,188.68
|
|
| ATWR-24-8-54 | 8" | 54" | 30" | Ramp |
$784.27
|
|
| ATWR-24-8-60 | 8" | 60" | 36" | Ramp |
$889.61
|
|
| ATWR-24-8-66 | 8" | 66" | 42" | Ramp |
$993.09
|
|
| ATWR-24-8-108 | 8" | 108" | 84" | Ramp |
$1,416.69
|
|
| ATWR-24-10-60 | 10" | 60" | 30" | Ramp |
$950.53
|
|
| ATWR-24-10-66 | 10" | 66" | 36" | Ramp |
$989.97
|
|
| ATWR-24-10-72 | 10" | 72" | 42" | Ramp |
$1,066.08
|
|
| ATWR-24-10-114 | 10" | 114" | 84" | Ramp |
$1,606.16
|
|
| ATWR-24-12-66 | 12" | 66" | 30" | Ramp |
$1,091.41
|
|
| ATWR-24-12-72 | 12" | 72" | 36" | Ramp |
$1,202.79
|
|
| ATWR-24-12-78 | 12" | 78" | 42" | Ramp |
$1,255.51
|
|
| ATWR-24-12-120 | 12" | 120" | 84" | Ramp |
$1,785.57
|
|
| ATWR-ABRK | N/A | N/A | N/A | Factory Installed Anchor Brackets (4 per riser) |
$54.07
|
|
| ATWR-WL | N/A | N/A | N/A | Factory Installed Add-on Wheel |
$58.99
|
|
| ATWR-FP | N/A | N/A | N/A | Factory Installed Welded Fork Pockets (7-1/2"W x 2-1/2"H) |
$53.98
|
|
Description
Elevate semi-trailers to loading docks for maximum serviceability during loading and unloading operations. Manufactured from heavy-duty aluminum tread plate for positive traction. Welded all aluminum construction. 30,000 lbs. capacity per pair (Sold Each). Wheel Risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for a maximum grade of ascending or descending loaded fork trucks.
Has 18 Degree Incline
