Vestil 28"W Aluminum Walk Ramps with Non-Skid Tread Surface
| Model Number | Length | Load Capacity | Max Usable Height | Overall Width | Price | Qty |
|---|---|---|---|---|---|---|
| AWR-28-6A | 6' | 2800 lbs w/ 4 Wheeled Cart | 2000 lbs w/ 2 Wheeled Cart | 6" - 21" | 28" |
$511.94
|
|
| AWR-28-7A | 7' | 2800 lbs w/ 4 Wheeled Cart | 1800 lbs w/ 2 Wheeled Cart | 6" - 25" | 28" |
$582.64
|
|
| AWR-28-8A | 8' | 2500 lbs w/ 4 Wheeled Cart | 1650 lbs w/ 2 Wheeled Cart | 6" - 29" | 28" |
$641.56
|
|
| AWR-28-9A | 9' | 2500 lbs w/ 4 Wheeled Cart | 1600 lbs w/ 2 Wheeled Cart | 6" - 33" | 28" |
$721.94
|
|
| AWR-28-10A | 10' | 2200 lbs w/ 4 Wheeled Cart | 1500 lbs w/ 2 Wheeled Cart | 6" - 38" | 28" |
$763.17
|
|
| AWR-28-12A | 12' | 1900 lbs w/ 4 Wheeled Cart | 1400 lbs w/ 2 Wheeled Cart | 6" - 46" | 28" |
$902.46
|
|
| AWR-28-14A | 14' | 1600 lbs w/ 4 Wheeled Cart | 1200 lbs w/ 2 Wheeled Cart | 6" - 54" | 28" |
$1,021.16
|
|
| AWR-28-16A | 16' | 1000 lbs w/ 4 Wheeled Cart | 1000 lbs w/ 2 Wheeled Cart | 6" - 62" | 28" |
$1,151.66
|
|
| AWR-28-6B | 6' | 2800 lbs w/ 4 Wheeled Cart | 2000 lbs w/ 2 Wheeled Cart | 6" - 23" | 28" |
$499.31
|
|
| AWR-28-7B | 7' | 2800 lbs w/ 4 Wheeled Cart | 1800 lbs w/ 2 Wheeled Cart | 6" - 27" | 28" |
$555.10
|
|
| AWR-28-8B | 8' | 2500 lbs w/ 4 Wheeled Cart | 1650 lbs w/ 2 Wheeled Cart | 6" - 31" | 28" |
$624.85
|
|
| AWR-28-9B | 9' | 2500 lbs w/ 4 Wheeled Cart | 1600 lbs w/ 2 Wheeled Cart | 6" - 35" | 28" |
$658.16
|
|
| AWR-28-10B | 10' | 2200 lbs w/ 4 Wheeled Cart | 1500 lbs w/ 2 Wheeled Cart | 6" - 40" | 28" |
$721.93
|
|
| AWR-28-12B | 12' | 1900 lbs w/ 4 Wheeled Cart | 1400 lbs w/ 2 Wheeled Cart | 6" - 48" | 28" |
$884.78
|
|
| AWR-28-14B | 14' | 1600 lbs w/ 4 Wheeled Cart | 1200 lbs w/ 2 Wheeled Cart | 6" - 56" | 28" |
$958.35
|
|
| AWR-28-16B | 16' | 1000 lbs w/ 4 Wheeled Cart | 1000 lbs w/ 2 Wheeled Cart | 6" - 64" | 28" |
$1,103.53
|
|
Description

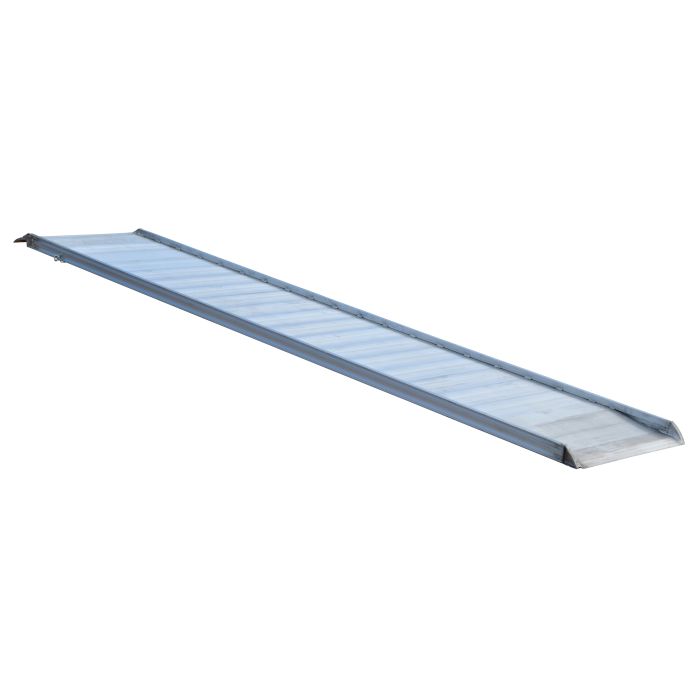

The Aluminum Walk Ramp enables delivery men, shippers, and receivers to load and unload trucks when docks are unavailable. Ramps feature a 1-1⁄2" high safety curb on each side. Heavy duty steel chains with steel grab hooks are attached to each side of ramp for safely securing ramp to truck. Constructed of strong aluminum alloy with non-skid tread surface. The ramp is lightweight and easy to handle. Available in either an overlapping style that rests on the truck bed, suffix "A", or steel hook style that mounts onto the truck extensions, suffix "B".
Capacity Varies depending on whether a 2 or 4 wheeled cart/dolly is used on the ramp.
