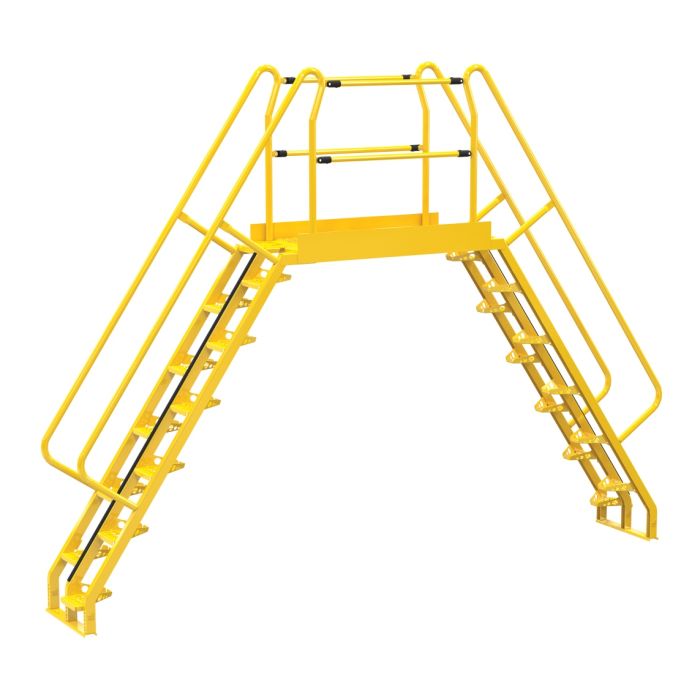

Vestil 56° Steel Alternating Step Cross-Over Ladders
Product Code:
Vestil_56_Degree_Alternating_Crossovers
Alternating step design for shorter overall span than other units. The upper platform features removable two sided 42" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off. View More
Vestil 56° Steel Alternating Step Cross-Over Ladders
| Model Number | # of Steps | Clearance (Vert) | Clearance (Horiz) | Platform Length | Price | Qty |
|---|---|---|---|---|---|---|
| COLA-2-56-56 | 4 | 26-13/16" | 52" | 49-1/2" |
$2,364.99
|
Out of stock |
| COLA-6-56-56 | 10 | 69-3/16" | 51-3/4" | 49-1/2" |
$3,628.04
|
Out of stock |
| COLA-5-56-56 | 8 | 57-3/8" | 52-1/8" | 49-1/2" |
$3,211.16
|
Out of stock |
| COLA-4-56-44 | 7 | 45-1/2" | 37-1/4" | 35-1/2" |
$2,788.56
|
Out of stock |
| COLA-3-56-32 | 5 | 34-13/16" | 31-1/8" | 28-1/2" |
$2,221.49
|
Out of stock |
| COLA-2-56-20 | 4 | 26-13/16" | 24" | 21-1/2" |
$2,158.54
|
Out of stock |
| COLA-7-56-44 | 12 | 81-5/16" | 37-1/2" | 35-1/2" |
$4,013.78
|
Out of stock |
| COLA-6-56-32 | 10 | 69-3/16" | 30-3/4" | 28-1/2" |
$3,211.16
|
Out of stock |
| COLA-5-56-20 | 8 | 57-3/8" | 24-1/8" | 21-1/2" |
$2,788.57
|
Out of stock |
| COLA-3-56-56 | 5 | 34-13/16" | 52-1/8" | 49-1/2" |
$2,364.99
|
Out of stock |
| COLA-2-56-44 | 4 | 26-13/16" | 38" | 35-1/2" |
$2,298.14
|
Out of stock |
| COLA-5-56-44 | 8 | 57-3/8" | 38-1/8" | 35-1/2" |
$3,211.25
|
Out of stock |
| COLA-4-56-20 | 7 | 45-1/2" | 23-1/4" | 21-1/2" |
$2,402.82
|
Out of stock |
| COLA-4-56-32 | 7 | 45-1/2" | 30-1/4" | 28-1/2" |
$2,402.84
|
Out of stock |
| COLA-3-56-20 | 5 | 34-13/16" | 24-1/8" | 21-1/2" |
$2,158.55
|
Out of stock |
| COLA-7-56-32 | 12 | 81-5/16" | 30-1/2" | 28-1/2" |
$3,628.03
|
Out of stock |
| COLA-6-56-20 | 10 | 69-3/16" | 23-3/4" | 21-1/2" |
$3,211.16
|
Out of stock |
| COLA-4-56-56 | 7 | 45-1/2" | 51-1/4" | 49-1/2" |
$2,788.54
|
Out of stock |
| COLA-3-56-44 | 5 | 34-13/16" | 38-1/8" | 35-1/2" |
$2,298.14
|
Out of stock |
| COLA-2-56-32 | 4 | 26-13/16" | 31" | 28-1/2" |
$2,221.51
|
Out of stock |
| COLA-7-56-56 | 12 | 81-5/16" | 51-1/2" | 49-1/2" |
$4,013.78
|
Out of stock |
| COLA-6-56-44 | 10 | 69-3/16" | 37-3/4" | 35-1/2" |
$3,628.04
|
Out of stock |
| COLA-5-56-32 | 8 | 57-3/8" | 31-1/8" | 28-1/2" |
$2,788.61
|
Out of stock |
| COLA-7-56-20 | 12 | 81-5/16" | 23-1/2" | 21-1/2" |
$3,628.03
|
Out of stock |
Description
Mount where you need permanent access at crossover points. Alternating step design for shorter overall span than other units.
Features:
- The upper platform features removable two sided 42" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off.
- Usable width is 19¾" between handrails.
- Heavy-duty uniform capacity rating of 350 pounds per unit. Includes lag-down points for securing to floor.
- Steel construction with powder-coat safety yellow finish.
- Meets OSHA and ANSI A14.7 standards.
Specs:
- Steps: 9-1/8" Wide x 10-1/2" Deep
- Width Between Handrails: 20-1/16"
- Base Width: 23-11/16"
- Overall Width: 24-1/16"
NOTE: I understand that once put into production, this item cannot be canceled or returned.
