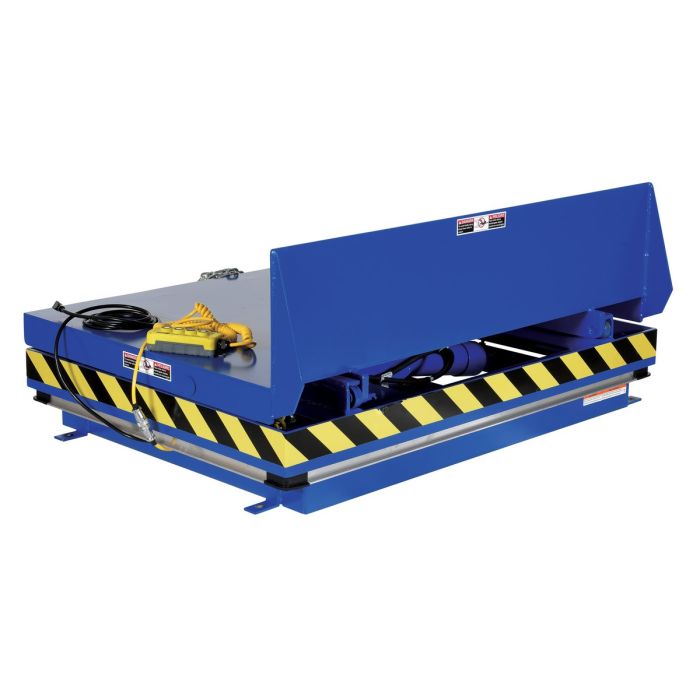

Vestil EHLTTS-3654-2-48 Electric Hydraulic Lift Table w/ 45° Side Link Tilt - 36"W x 54"L - 2,000 lbs Capacity
Product Code:
EHLTTS-3654-2-48
Performs both lifting and tilting operations. View More
$6,898.37
- 10+
Estimate Shipping
Loading...
Description
Performs both lifting and tilting operations. Restraining chain and 12" high lip keep load in place during tilting. Safety features include: electric toe guard to shield worker from pinch points during lowering of table, velocity fuses to stop travel due to loss of hydraulic pressure, 4 push-button hand pendent control on an 8 foot coil cord, upper limit switch to stop travel at maximum height reducing motor wear and maintenance prop. End tilt standard, side tilt available.
Features:
- Steel Cradle is 12" high, open design allows loading/unloading from three sides.
- Unique link tilt design center of load remains closer to the center of the table to increase safety and minimize space requirements.
- Brass Velocity fuse in cylinder prevents drop of table in event of hydraulic failure.
- Slot lock and restraint chain.
- NEMA-4 hand control provides a weatherproof case for years of durability.
- Fused 24 Volt control helps to ensure operator safety.
- Perimeter pinch point guard
- Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
- Upper Travel limit switch is field adjustable
- 3000 PSI component rating on crimped hoses and fittings.
NOTE: I understand that once put into production, this item cannot be canceled or returned.
Specifications
| Capacity | 2,000 lbs |
|---|---|
| Table Length | 54" |
| Table Width | 36" |
| Lowered Height | 12" |
| Raised Height | 48" |
