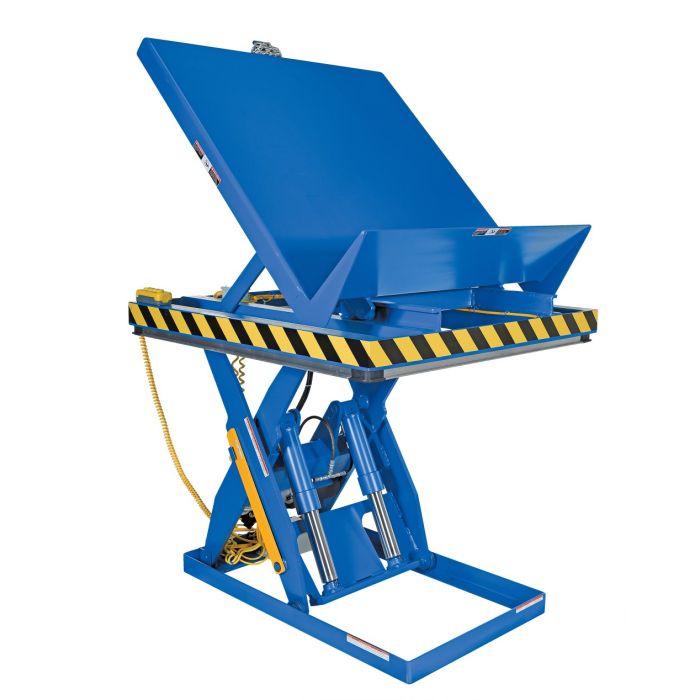

Vestil Electric Hydraulic Lift Tables with 45 Degree End Tilt
| Model Number | Table Width | Table Length | Lowered Height | Raised Height | Capacity | Price | Qty |
|---|---|---|---|---|---|---|---|
| EHLTT-4848-3-47 | 48" | 48" | 11" | 47" | 3,000 lbs |
$7,818.15
|
|
| EHLTT-3648-1-47 | 36" | 48" | 11" | 47" | 1,000 lbs |
$6,446.41
|
|
| EHLTT-3648-3-47 | 36" | 48" | 11" | 47" | 3,000 lbs |
$7,415.88
|
|
| EHLTT-4848-5-47 | 48" | 48" | 13" | 47" | 5,000 lbs |
$11,018.24
|
Out of stock |
| EHLTT-4848-2-47 | 48" | 48" | 11" | 47" | 2,000 lbs |
$6,748.90
|
|
| EHLTT-4848-4-47 | 48" | 48" | 11" | 47" | 4,000 lbs |
$8,892.81
|
|
| EHLTT-3648-2-47 | 36" | 48" | 11" | 47" | 2,000 lbs |
$6,508.19
|
|
| EHLTT-3648-4-47 | 36" | 48" | 11" | 47" | 4,000 lbs |
$8,318.97
|
|
| EHLTT-4848-1-47 | 48" | 48" | 11" | 47" | 1,000 lbs |
$6,653.92
|
|
Description
Performs both lifting and tilting operations. Restraining chain and 12" high lip keep load in place during tilting. Safety features include: electric toe guard to shield worker from pinch points during lowering of table, velocity fuses to stop travel due to loss of hydraulic pressure, 4 push-button hand pendent control on an 8 foot coil cord, upper limit switch to stop travel at maximum height reducing motor wear and maintenance prop. End tilt standard, side tilt available.
Features:
- Steel Cradle is 12" high, open design allows loading/unloading from three sides.
- Unique link tilt design center of load remains closer to the center of the table to increase safety and minimize space requirements.
- Brass Velocity fuse in cylinder prevents drop of table in event of hydraulic failure.
- Slot lock and restraint chain.
- NEMA-4 hand control provides a weatherproof case for years of durability.
- Fused 24 Volt control helps to ensure operator safety.
- Perimeter pinch point guard
- Industrial quality, 56 frame, 2 HP motor delivers best torque with minimal amperage draw and maximum life.
- Upper Travel limit switch is field adjustable
- 3000 PSI component rating on crimped hoses and fittings.
