Vestil Low Profile Aluminum Light Load Lifts

Vestil Low Profile Aluminum Light Load Lifts for Delivery and Stockroom Handling

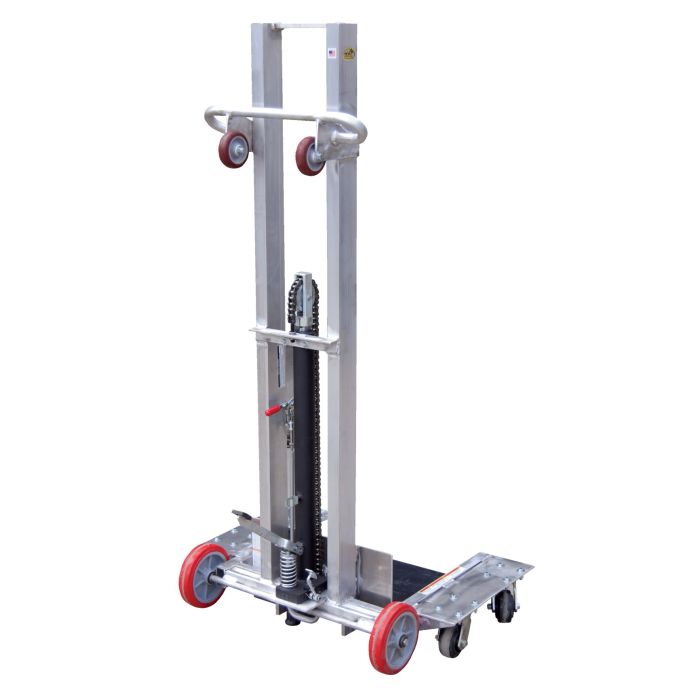

Low profile aluminum light load lifts provide an efficient way to lift, transport, and position loads between delivery trucks, docks, storage racks, workstations, and inventory areas. The defining feature of this group is a 1/4 inch lowered deck height with 2 inch high side lips, making it easy to slide low-clearance items onto the platform without lifting. Lightweight aluminum construction keeps these lifts easy to maneuver, while a 400 lb. uniform capacity handles cartons, small equipment, parts, totes, and general workplace materials in warehouses, stockrooms, retail backrooms, service departments, and light manufacturing environments.

Winch and Foot Pump Operation

Models are available with either hand winch or foot pump operation, giving users a practical choice based on lifting preference and application. The platform raises approximately 1 inch per winch rotation or foot pump stroke for controlled positioning, with a 10 inch horizontal load center. Two rollers located on the handle help ease loading into delivery trucks.

Low Profile Platform Design

All models in this group feature a 19-1/2 inch by 20 inch platform with a 1/4 inch lowered deck height, allowing loads to roll or slide on at nearly floor level. Raised heights extend up to 58-1/4 inches depending on model, providing a practical service range for moving materials between floor level, truck beds, and storage shelving.

Wheel and Caster Configurations

Fixed wheel models roll smoothly on 6 inch by 2 inch poly-on-poly rear wheels with 2 inch semi-steel front wheels. Swivel caster models feature 8 inch by 2 inch poly-on-poly rear wheels, four swivel casters, and a hand operated floor lock for added stability during loading and unloading.

Model Comparison
